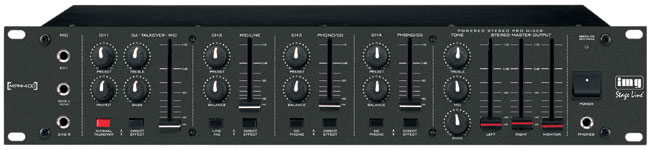

MPM-400
Powered mixer, 2 x 100WRMS/2 x 150WMAX/8Ω
Features:
- Audio mixer and audio amplifier in a metal housing
- 1 microphone channel (channel 1) with 2-way tone control, pan pot and automatic talkover
- 1 stereo input channel (channel 2), switchable mic/line, with balance control
- 2 stereo input channels (channels 3+4), switchable phono/line, with balance controls
- Each input channel with adjustable gain control
- Effect send/return, effect can be selected for each input channel
- Due to optimised power capability, 8Ω operation possible only
- Master output with 3-way equalizer
- Monitor output and record output, adjustable via inputs and master
- Dual LEDs for indicating power on and peak
Technical Facts:
- RMS output power 2 x 100WRMS/8Ω
- Frequency range 10-30,000Hz
- Input impedance 4kΩ (mic)
10kΩ (line)
47kΩ (phono)
- Input sensitivity 1.5-45mV (mic)
75-750mV (line channel 2)
1.35-135mV (line channels 3+4)
1.2-12mV (phono)
- Headphone output 2 x 45mW/32Ω
- S/N ratio > 70dB
- THD 0.1%
- Equalizer ±12dB/30Hz (bass inputs)
±10dB/30Hz (bass master)
±10dB/1kHz (midrange master)
±12dB/12kHz (treble inputs)
±10dB/15kHz (treble master)
- Power supply 230V˜/50Hz/320VA
- Admiss. ambient temp. 0-40 oC
- Dimensions 482x89x280mm, 2RS
- Weight 12kg
|
