16 Channel Digital Multiplex Colour Recorder With a 500Gb Hard Drive
The perfect centrepiece for medium - large CCTV systems, this 16 channel multiplexer with built-in digital recorder replaces the traditional multiplexer unit and 'time-lapse' VCR with one easy to use, maintenance free, high quality unit.
24 times greater recording capacity than a traditional time lapse VCR
8438 hours - nearly 6 months recording on two 250Gb hard disks
16 video inputs, 4 audio inputs
16 loop outputs and seperate 'Call Event' output
Single channel and multiple camera display options
Picture in picture option
200% playback zoom function
Motion triggered recording
Adjustable video compression quality and frame rate
Security password protection
Simple controls on front panel
Camera 'tampering' alarm
Uses standard computer IDE hard drives in swappable transport
Record modes: Manual, alarm and timer
Power supply - 90 - 240Vac (±10%) , 45W
Dimensions - 432 x 110 x 325mm
Video format - PAL/CCIR
Weight - 5.7kg
Resolution:Full screen - 704 x 564
Operation temperature - 10 - 40°C
Hard disk storage - IDE, UTMA66
Camera input signal - BNC, 1V (p-p), 75 ohms
Audio input - 4 x RCA
Camera loop back - BNC, 1V (p-p), 75 ohms
Main monitor output - BNC, 1V (p-p), 75 ohms
Call monitor output - BNC, 1V (p-p), 75 ohms
Motion detect areas - 210 (15 x 14)
Motion detect sensitivity - 0- 256
Audio output - 2 x RCA
Recording rate (frames per second) - 1 - 12
Refresh rate (images per second) - 60
Dwell time (seconds) - 1 - 10
Picture zoom - 200%
Alarm input - TTL (5V, GND)
Alarm output - COM, N.O., N.C.
Remote control - RS-232 / RS-485
HARD DISK - Features 2 x 250GB hard disks for data storage.
Recording times

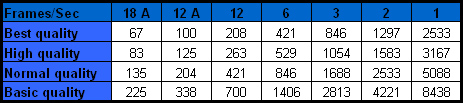

The recorder can record video at several frame rates and several compression settings. At the best quality (Digital Video and audio) at 18 frames per second up to 67 hours of video with audio will fit on the 2 x 250Gb disks. By adjusting the quality setting to lowest quality and the frame rate to 1 frame per second this can be increased to 8438 hours - which is nearly 1 year of continuous recording. The table below shows the duration of recording (in hours) that can be achieved at the various settings. (Note: A = with audio)
