Datalogging Light Meter
MODEL DLM 536
Spectrum of photo sensor meets C.I.E.
Photopic curve V(l)
16000 Records Data logging capacity

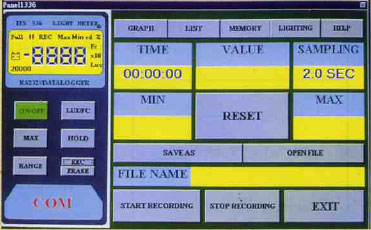

RS-232 interface (software included)
Measurement of luminous intensity
Measuring range - 20/200/2000/20000 Lux , 20/200/2000/20000 Fc
Luminous intensity (cd) - Intensity = illuminance x (length)2
Length - G feet (Fc) meter (Lux)
Resolution - 0.01 Lux
Accuracy - +/-( 3% rdg + 5dgts ) (calibrated to standard incandescentlamp, 2856 K)
Overrang display - OL
Record (Data logging) - 16000 Point Data logger
Sensor - Silicon photo diode
Sensor lead length - 150cm (approx)
Sensor probe - 100(L) x 60(W) x 27(H) mm
Main instrument Dimensions and weight - 146(L) x 70(W) x 39(H) mm/300g (approx)
Power source - One 9V battery
Battery life - 50hrs (approx)
Operating Storage Condition - 0oC ~ 40oC ( 32oF~104oF ) below 80% RH -10oC ~ 60oC ( 14oF~140oF ) below 70% RH
Accessories - Carrying case, B9V battery, Instruction manual, PC Software, BRS-232 cable, B 9 Pin to 25 Pin gender changer
|
