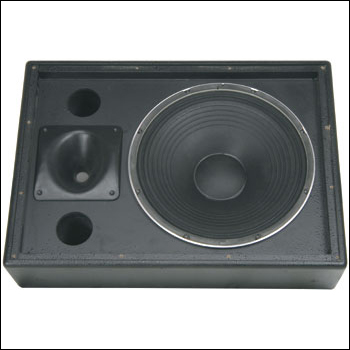

Citronic CX-3008M Ultima Professional Series Stage Wedge
A dual angle floor wedge fitted with a top hat enabling it to be used also as a pole mounted top box. Using this option for main PA as well as floor wedges gives the whole system the same sound signature greatly reducing EQ problems hence simplifying the set-up for bands with no dedicated sound engineer. The enclosure is made from premium Russian ply with custom drive units which give a wide bandwidth and an exceptionally smooth response, making it ideal for the demands of today’s modern programme material. Industry standard flying points are fitted as standard for ease of installation and integration into multiple arrays. Its computer-aided design ensures accurate tuning of enclosures for maximum output and tailored bottom response. Great attention has also been given to panel bracing to reduce resonances so increasing sonic definition and authority.
Product features:
Durable textured black paint finish
12 x M10 hanging points
Powerful low frequency, rich elasticity, crisp vocal penetration
Coated steel grille lined with special material to prevent ingress of foreign particles for maximum protection
Speakon® plugs fitted for reliability and maximum power transfer from the amplifier
Top hat fitted for maximum versatility in mixing and matching enclosures
All fittings rebated for easier stacking and arraying
Steel bar handles fitted as standard
Specifications:
Dimensions 490 x 670 x 390mm
Impedance 8 ohms
Power rms 300W
Weight 30kg
Frequency response 50Hz - 18kHz (-3dB)
Frequency response 45Hz - 20kHz (-10dB)
Woofer 1 x 38cm (15')
SPL @ 1W/1m 97dB
Tweeter 4.4cm (1.75')Titanium
Power max. (5 mins max.) 600W
Dispersion H: 90°, V: 60°
SPL max 122dB (±3dB)
|
|
|
|
|
|
