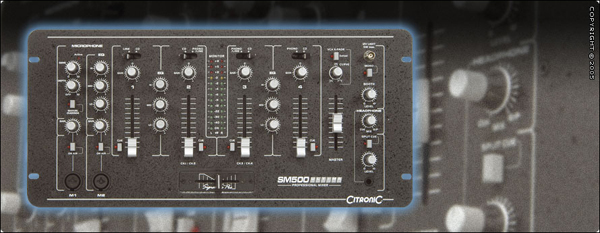

The SM500 Ultima mixer is built on a Citronic legend. This robust DJ mixer is designed to give high performance with reliability for installations on a budget, with high quality components, rail glide faders, and all the essential features the SM500 is fast becoming the standard for all pub/club installations.
Signal to noise ratio:Phono - >70dB
The dual microphone facility features a comprehensive Mic override system ideal for radio microphones, 3-band equalisation, balanced and unbalanced inputs as well as individual on-air buttons.
There are 4 CD, 3 Line and 3 Phono inputs routed to the four heavy duty music input faders via input gain, and shared EQ controls for level matching. Channels 1 & 2 share a 3-band equaliser, as does 3 & 4, which is then routed to their respective ends of the on-board VCA crossfader.
The music channel 3-band Eq can be internally installer defeated to prevent any additional Eq being added by the DJ once the sound system has been set.
The SM500 Ultima also offers the main mixer output in either balanced XLR or unbalanced phono connectors, as well as providing program mono and sub bass outputs. In addition a booth output is provided, which can be either full program or music only. This is selected by an internal movable link and will prevent Mic feedback.
One of the SM500’s unique features is the re-positional connector panel, this allows the installer to easily rack the mixer into a console or 19” rack. The connector panel can be moved to be on the rear of the unit or on the underside of the mixer, making the SM500 Ultima the most versatile mixers in its range.
