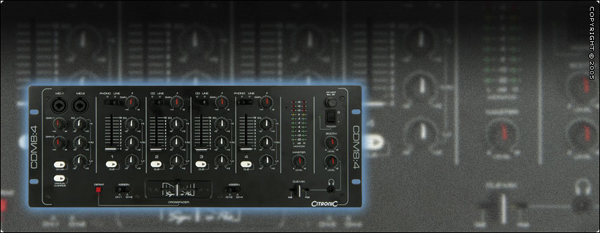

Citronic CDM8:4S 4-Channel DJ Mixer
The CDM8:4s is a 4 channel 10 input DJ mixer, the inputs consist of 2 mic inputs with a shared 3-band EQ and separate gain controls, the inputs on the music channels are 2 Phono, 2 CD and 4 line. Each music channel has a 3-Band EQ and individual gain control. The fully assignable railglide crossfade has a defeat function for when it is not in use. The CDM8:4s has a compact design making it ideal for mobile and small club use.
Product features:
4-Channel 19' 4U 10 input DJ mixer
2 Master mic inputs with individual gain control
3-Band shared microphone EQ
Individual gain controls on each music channel
3-Band Eq per music channel
45mm Rail-glide replaceable crossfade with defeat function
Crossfader assign switches
Headphone mix control
12V BNC console light
Booth output
10-Bar LED monitor
Balanced XLR master output
Fader Start compatible
Specifications:
Dimensions 783 x 177 x 95mm (4U)
Power supply 230Vac, 50Hz
Weight 5kg
Headphone output 112mW @ 32 ohms
Input:Mic 1.73mV, 2k ohms
Input:Phono 4mV, 47k ohms
Input:Line 775mV, 50k ohms
Signal to noise ratio:Mic 68dB
Cutout 165 x 440m
Equalizer:Treble ±12dB @ 10kHz
Equalizer:Midrange ±12dB @ 1kHz
Equalizer:Bass ±12dB @ 100Hz
Signal to noise ratio:Line >87dB
Signal to noise ratio:Phono 73dB
|
|
|
|
|
