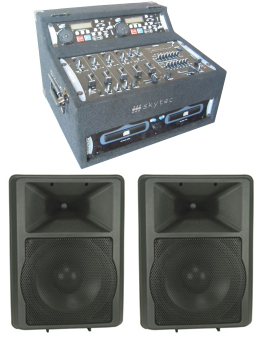

Twin CD DJ Kit 2 - 600W POWERED SPEAKERS
DJ Kit
The Skytec DJ kit offers an all-in-one system for the mobile DJ. The kit includes the TEC2420 Dual CD-player with Anti-shock, instant start, pitch control and cool blue screen, the mixer TEC1242 features 4-channels with a total of 16 inputs, 4 main microphone – 1 Auxillary microphone – 3 Phono – and 8 Line. The system comes in a black carpet covered case.
TEC2420 Dual Anti-shock CD-player
TEC1242 4-channel DJ mixer
Carpet covered 2-5-2U case
Supplied in a full-colour gift box
Anti-shock
Instant start
Pitch control ±16%
Jog/shuttle wheels for frame by frame search
4 Balanced microphone inputs with effects
4 music channels with 12 inputs
14-band master EQ ±12dB
BNC light socket
Headphone mix
Balanced XLR master output
Power supply 115V/230V 60Hz/50Hz
Weight 15.5kg
TEC1242 DJ Mixer
INPUTS
DJ Mic 1.5mV 2k ohm Balanced
Phono 3mV 47k ohm
Line 150mV 27k ohm
Aux 150mV 27k ohm
OUTPUTS
Main/Aux 0dB 1V 400ohm
Rec 225mV 5k ohm
MIC 1-4
DJ mic 1.5mV 2k ohm balanced
Bass-EQ ±12dB
Hi-EQ ±12dB
GENERAL
Frequency Response 20Hz - 20kHz ±2dB
THD >0.02%
S/N Ratio <80dB
Talkover attenuation -16dB
Headphone Impedance 16 ohm
TEC2420 Dual CD Player
SPECIFICATIONS
Anti-Shock Buffer Memory 30 Seconds
Audio Response <2dB (20Hz-20kHz)
D/V Converter 24 bits
Frequency Response 20Hz - 20kHz
THD <0.1%
S/N Ratio 85dB
Pitch Control ±16%
Output Level 1.5V
Active Speaker System
A pair of Skytec active moulded cabinets, with tough yet lightweight ABS enclosures designed for the rigours of the modern DJ. Each enclosure has a trapezoidal design with easy carry handle, and top hat for stand mounting.
Built-in amplifier with passive 2-way crossover
XLR and RCA phono Line inputs
XLR/Jack Microphone Input
XLR/Jack Line output
Bass and treble control
Lightweight ABS enlosure
Bass driver with coated paper cone, steel chassis and vented coil
Low impedence compression horn driver
Rigging points
Top hat with locking screw
Trapezoidal design
Rigid steel grille
Easy carry handle
Woofer - 38cm / 15''
Tweeter - 7.5cm / 3''
Power RMS - 300W each
Top Hat - Base mounted 35mmø
Connector - XLR/6.35mm/RCA
Dimensions - 685 x 445 x 350mm
Weight - 26kg
Frequency Response - 40Hz - 18kHz
Sensitivity - 92dB (±3dB)
Mic Input Level - 3mV
Line Input/Output Level - 250mV
