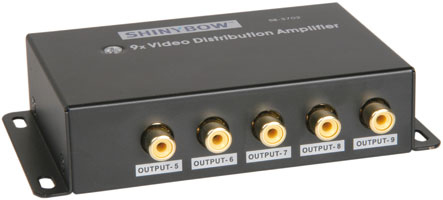

Designed to amplify and distribute a single composite video source to 9 outputs. A typical application is to split a composite video player output to nine plasma or LCD monitors.
Gold plated contacts for optimum signal transfer
LED to indicate power ON
Compact, low profile metal case which can be free standing or wall mounted
Mains adaptor included
Supplied in gift box
Power supply 12Vdc, 500mA
Signal Type Composite video
Video bandwidth 320MHz ( G= +10 ), Maximum 440MHz ( G = +2 )
Slew rate 5.500V/µs , 4V step, G = +2
Video distortion (SFDR) -66dBc @ 20MHz
Connectors RCA phono sockets
Dimensions 128 x 87 x 29mm
Weight 258g
|
