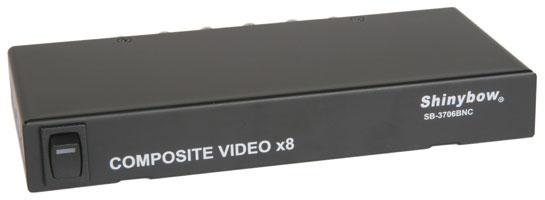

A distribution amplifier that provides multiple composite video outputs that are identical to the source signal.Ideal for distributing signals from VCRs, DVDs, Video Game Consoles etc.
Easy to install and highly reliable
Compact, low profile metal case with anti-slip feet
Input/Output via BNC connectors
Mains adaptor included
Supplied in gift box
Power supply 12Vdc, 500mA
Video input 1 x composite video, 75 ohms
Video output 8 x composite video, 75 ohms
Video bandwidth 150MHz
Video distortion <1.2dB (±3dB)
S/N ratio >50dB
Dimensions 176 x 100 x 27mm
Weight 517g
|
