Auto Flushing Membrane System
Provide the highest water quality. Always keep the perfect membrane's effectiveness and get the best water quality.
The world most modern water treatment technologies
As an industry leader for highest quality, state-of-the-art RO System. We have designed this new electronic controls box to automatically control the RO systems. Which can provides the highest water quality.
Auto flushing the membrane to get the best RO performance.
It is the world most modern technologies for RO system. It was usually been installed in the industry RO unit only. But now we are the first one to install it in our residential RO units.
Benefits
Built-in the self-cleaning procedure, so the membrane remains clean. Water never stands still for a longer time to avoid bacteria growing. Let all of your customers can enjoy the best water quality.
5 Indicators : shows how it works
Full, Flush, Process, Source, Power. Easy to control the RO system and help your customer to understand the RO system. Smart to warn the user if the operation is affected for any reason.
Features:
NSF Standards Water Storage Tank.
FDA Approved Polypropylene Made Flat Cap Housing (double o'ring).
Safety approval: TUV (EN60950) & CE MARK
Automatic Shut-off Valve
Special technical designs (Patented No.068018. flush membrane )
Flow Restrictor, Stainless Steel Check Valve.
European design attractive faucet.
Feed water connector & deliver valve
Drain Saddle Valve.
Four Color Coded 1/4 inch Tubing for System Connection
Completely Assembled & Water leaking testing
100% Factory Tested and Sterilized Ready for Installation.
Installation Instruction.

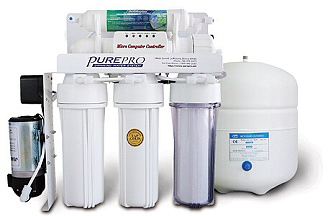

Our RO103 comes complete with a NSF standard 3.2 gallons water storage tank and all the necessary fittings, installation kits, color 1/4'' tubing, installation manual and a long-reach attractive faucet.
RO103 - cartridge filters
(Stage 1) 5 Micron Sediment Filter :
With only five micron rating. It is effective in removing dirt, rust and sand particles.
(Stage 2) Granular Activated Carbon Filter:
It takes out 99% of the chlorine and organic chemicals. It provides enhanced reduction of taste, odor, and color.
(Stage 3) Block Carbon Filter :
Further reduces chlorine, odors, and other chemicals that might be in your water supply.
(Stage 4) Reverse Osmosis Membrane:
A thin film composite (TFC) high quality membrane that processes 80 gallons per day. It remove the following hard water contaminants that may be present in your water: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
(Stage 5) Post Carbon filter:
Specifications:
Membrane: 80 GPD / 302 LPD
With a transformer, available in 110Volt, 220Volt or 240Volt (50/60Hz).
Safety approval: TUV (EN60950) & CE MARK
Operation pressure: 5 -80 psi
Dimensions:
- (cm)47 (L) x 42(H) x 20 (W) - system
- (cm) 28 (L) x 28(W) x 35 (H)- tank
Weight:
- 14 kg - system
- 4 kg - tank
|
