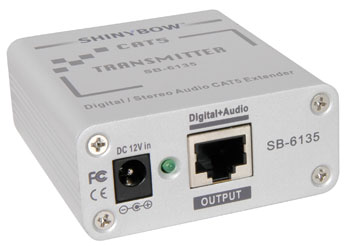

A compact transmitter for sending digital audio (PCM) or video + stereo audio signals upto 1000ft (300m) to a CAT 5 receiver.
Features:
Easy to install and highly reliable
Inputs via gold plated, colour coded RCA phono sockets
RJ-45 output socket
Brushed aluminium case with mounting brackets
LED power ON indicator
Supplied with mains adaptor
Supports HDTV resolution 480p, 720p, 1080i
For use in conjunction with the CAT 5 receiver (128.682)
Auto tint and brightness control
Specification:
Power supply 12Vdc, 300mA
Distortion -80dB total harmonic @ 1 MHz: Rl = 100 ohms
Video input level 1.45V (p-p) max.
Audio input level 3.1V (p-p) max.
Video bandwidth 450MHz, -3dB
Slew rate 1600V/µs
Audio input impedance 10k ohms
Dimensions 66 x 70 x 26mm
Weight 495g
|
