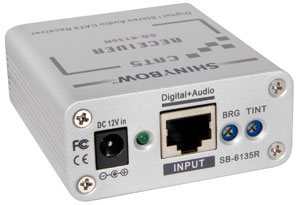

A compact receiver for accepting digital audio (PCM) or video + stereo audio signals from a CAT 5 transmitter upto 1000ft (300m) away.
Features:
Outputs via gold plated, colour coded RCA phono sockets
Easy to install and highly reliable
RJ-45 input socket
Brushed aluminium case with mounting brackets
LED power ON indicator
Supplied with mains adaptor
Supports HDTV resolution 480p, 720p, 1080i
For use in conjunction with the CAT 5 transmitter (128.679)
Adjustable tint and brightness
Specification:
Power supply 12Vdc, 300mA
Distortion -80dB total harmonic @ 1 MHz: Rl = 100 ohms
Video output level 1.45V (p-p) max.
Video bandwidth 450MHz, -3dB
Slew rate 1600V/µs
Audio output impedance 10k ohms
Dimensions 66 x 70 x 26mm
Weight 610g
|
