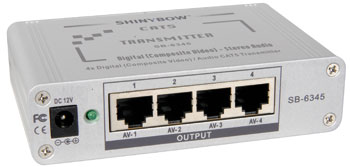

A compact transmitter with an AV preview output and 4 x CAT 5 outputs for sending composite video and stereo audio signals up to 1000ft (300m) to a CAT 5 receiver.
Features:
Inputs via gold plated, colour coded RCA phono sockets
Easy to install and highly reliable
4 x RJ-45 output sockets, 3 x RCA (AV) output sockets
Brushed aluminium case with mounting brackets
LED power ON indicator
Supplied with mains adaptor
Supports HDTV resolution 480p, 720p, 1080i
For use in conjunction with the CAT 5 receiver (128.682)
Can connect to 4 x CAT 5 receivers + AV monitor
Auto tint and brightness control
Specification:
Power supply 12Vdc, 300mA
Distortion -80dB total harmonic @ 1 MHz: Rl = 100 ohms
Video input level 1.45V (p-p) max.
Audio input level 3.1V (p-p) max.
Video bandwidth 450MHz, -3dB
Slew rate 1600V/µs
Audio input impedance 10k ohms
Dimensions 112 x 70 x 26mm
Weight 630g
|
