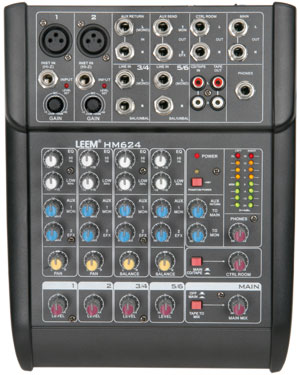

A high quality, professional compact audio mixer packed with many features giving excellent performance in a wide range of live PA applications.
Features:
Variable input trim (+3 to +50dB for microphones and -22 to +25dB for line level)
2 Mic, 2 Instrument/ Line & 2 Stereo Line inputs
XLR microphone input
6.35mm instrument line input
Level, Pan, Pre/Post fade Aux Send, 2-Band EQ controls on each channel
RCA Tape IN/OUT
Phantom power +48V
Effects send and return
Headphone output with level control
AC/AC adaptor supplied
Specification:
Power Supply 2 x 17Vac @ 590mA
Frequency Response 20Hz-20kHz
THD <0.025% @ +4 dBu output
S/N Ratio -102dB
Equalization High : ±15dB @ 12kHz Low : ±15dB @ 80Hz
Input Impedance Mic : 2.3kohm balanced. Instrument : 1Mohm. Stereo Line : 20kohm balanced. CD/Tape In : 24kohm
Dimensions 209 x 67 x 270mm
Weight 1.5kg
|
