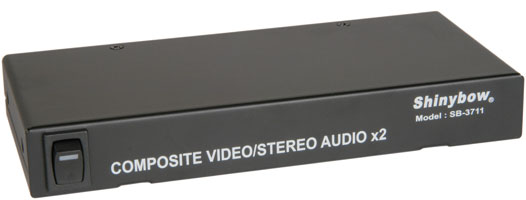

A composite video and stereo audio signal distribution amplifier with 1 input and 2 outputs. Can be used in applications such as splitting a DVD player out to two TVs to display high quality pictures.
RCA phono socket connectors
Gold plated contacts for optimum signal transfer
Compact, low profile black metal case
On/Off switch with integral LED
Mains adaptor supplied
Supplied in gift box
Power supply 12Vdc, 300mA
Video input Composite video, 75 ohms
Audio input Stereo R/L, -20dB, 47K ohms
Video outputs 2 x composite video, 75 ohms
Audio outputs 2 x stereo R/L, -20dB 47K ohms
Video bandwidth >150MHz
Video distortion <1.2dB (±3dB)
Audio distortion <0.6dB (±3dB)
Channel isolation >50dB
S/N ratio >50dB
Dimensions 176 x 90 x 27mm
Weight 367g
|
