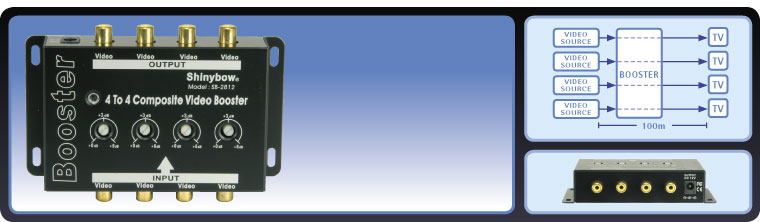

This compact unit allows for the distribution of four composite video signals to distances of up to 1000ft (300m). The integrated amplifier provides adjustment of each video signal from +0db to +6db ensuring outputs that are identical to the source signals. Ideal for distributing signals from DVD or higher resolution Video sources including CCTV signals to TV or display monitors and perfect for classrooms, training facilities, conference halls, warehouses, retail outlets and bars etc.
Connectors - BNC not as shown in picture
Metal case with non-slip feet
LED power ON indicator
Supplied with mains adaptor
Variable output (0dB to + 6dB)
Power supply 12Vdc, 500mA
Power consumption 100mA max.
Signal type Composite video
Video bandwidth 440MHz (G= +2), 320MHz (G= +5)
Setting time 10ns to 0.1%, 2V step, G= +2
Low distortion (SFDR) -66dBC @ 20MHz, second harmonic
Dimensions 104 x 72 x 25mm
Weight 600g
|
