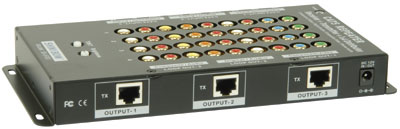

An innovative 3-in-1 single CAT 5 input audio/video distribution amplifier, capable of receiving and repeating RGB video/digital audio/composite video and stereo audio via CAT 5 cable from the transmitter (128.597) and sending them to both the receiver (128.599) and for output to 4 x high definition HDTV/plasma displays.
High speed amplifiers designed to operate three group signals with high performance quality of HDTV signals
The receiver has a CAT 5 (RJ45) input and one loop output for connecting to another distribution amplifier
Gold plated, colour coded RCA phono output sockets for optimum signal transfer
Compatible with RGB/digital audio/composite video/stereo audio
Wall mountable
User tint and brightness controls
CAT 5 (RJ45) input to 4 x RCA outputs and 1 x CAT 5 (RJ45) loop out
Receive indication via LED
Metal case with non-slip feet
Mains adaptor supplied
Power supply 12Vdc, 1.2A
Distortion -80dBc @ 1MHz
Video bandwidth >160MHz
Slew rate 2700V/µs
Audio output 3.1V (p-p), 10k ohms
Video output 1.45V, 75 ohms
Dimensions 210 x 112 x 26mm
Weight 925g
|
