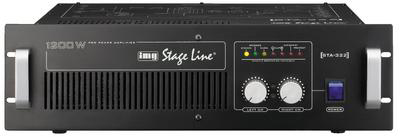

Stereo PA amplifier with integrated 2-way crossover network and limiter.
Line outputs can be switched via high-pass
Integrated 2-way crossover network, adjustable crossover frequency 60/90/120/200/280Hz, switchable phase 0°/180°
Groundlift switch and low cut switch
Protected against short circuit, overheating, and DC voltage
LEDs for overload (clip), stereo operation, bridge operation, and subwoofer operation, overheating as well as activated protective circuit (protect)
Soundcheck 11/2002
'Conclusion: one cannot complain with regard to price, these features, and the quality of these units.'
Tools4music 05/2004
'Extensive features, and as the only one withstood the sinusoidal stress test without any complaints.'
STA-322 and STA-162 are now supplied with integrated limiters to be switched off which provide perfect stability for these high-power amplifiers in the max. power range.
Output Power
Stereo 4Ω
2 x 400WRMS
Stereo 8Ω
2 x 300WRMS
8Ω bridge operation
1 x 800WRMS
Max. power
1 x 1,200WMAX
General information
Inputs
0.775V/20kΩ
Frequency range
10-20,000Hz
S/N ratio
> 60dB
Crosstalk attenuation
> 35dB
THD
< 0.5%
Power supply
230V˜/50Hz/1,500VA
Admiss. ambient temp.
0-40 °C
Dimensions
482x138x450mm, 3RS
Weight
22kg
Connections
2 x XLR L/R,
2 x RCA L/R,
2 x 6.3mm jack L/R,
3 x SPEAKER.
|
