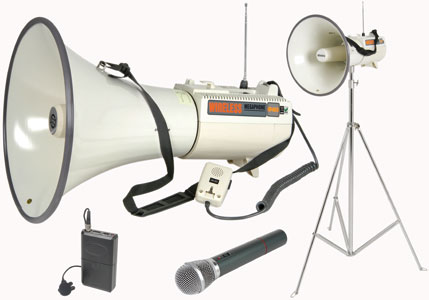

A battery operated, powerful 45W output megaphone with handheld and body pack VHF wireless transmitters allowing a wide scope of applications in schools, sports and leisure activities, outdoor public address and electioneering.
Features:
- Supplied with handheld and tie-clip VHF radio microphones
- Handheld wired microphone with push to talk switch and rotary volume control
- Shoulder strap for portable use
- Strong all metal construction tripod stand with a spring damped centre pole and 3 securing spikes
- Powered with batteries or via car lighter socket with 6m DC power lead provided
- Whistle and siren alarm functions
- AUX input (3.5mm)
- LED battery condition indicator
Specification:
- Power supply 15Vdc (10 x R20, D cells , not supplied) or external DC source, 12V-13.8V
- Amplifier output 45W max
- Audible range 0.8 - 2.2km dependent on conditions
- Auxiliary input 300mV, 30k ohms
- Battery 9V (6F22, PP3)
- Battery life (hours) : Signal 2
- Battery life (hours) : Voice 20
- Current consumption : Bodypack 20mA
- Current consumption : Handheld 30mA
- Frequency response 50Hz - 15kHz
- Frequency stability ±0.005%
- Operating frequency 174.1MHz/174.3MHz/174.5MHz/175MHz
- RF output power : Bodypack 10mW
- RF output power : Handheld 15mW
- Tripod height 1.1m - 2.0m
- Dimensions 515 x 350mmŲ
- Dimensions : Bodypack 106 x 23 x 66mm
- Dimensions : Handheld 245 x 55mmŲ
- Weight 3.3kg (w/o batteries)
- Weight : Bodypack 80g
- Weight : Handheld 205g
|
