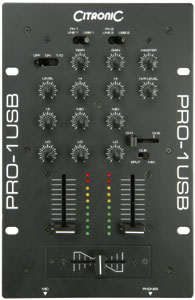

The PRO-1USB is a 2-Channel mixer with 2 built-in USB soundcards, this allows you to connect it directly to a PC/Mac or other USB device and play audio directly into the mixer. The USB is multi-directional so this also allows you to record back to the computer and save you mixes using various recording software. USB aside, the mixer will also accept connection of 2 line level devices such as CD-players and 2 turntables, each channel has an individual gain control and 3-band EQ giving you full control over the audio signal. The mixer also features a microphone input with gain control, 2-band EQ and talkover facility. The headphone section features H/P mix or split cue, ideal for mixing before output. All-in-all a great little multi-functional mixer.
Features:
- 2 channel, 7 input - 2 phono, 2 line, 2 USB, 1 mic
- 2-way built-in USB soundcards
- No drivers required - installs with Windows XP or Mac OS X
- Mains adaptor and 2 x 1.8m USB connecting leads supplied
- Individual gain controls
- 3-band music EQ
- 2-band mic EQ
- Mic talkover function
- Headphone split cue or mix facility
- 10-bar LED monitor display
Specification:
- Power supply 9Vac, 500mA
- Frequency response 20Hz - 20kHz (±3dB)
- Headphone output 32 Ohms, 1.5V (±0.3V)
- Input : Line 200mV
- Input : Mic 2mV
- Input : Phono 3mV
- Output : Master 4.5V (±0.5V)
- THD <0.09%
- Dimensions 270 x 178 x 100mm
- Weight 1.9kg
|
