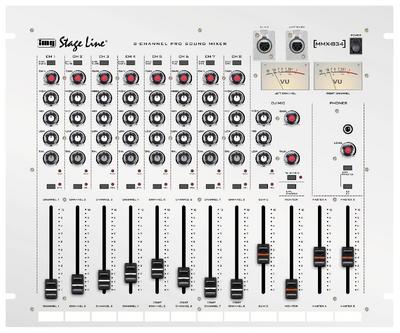

8-channel stereo audio mixer,
for stage applications.
- 6 stereo channels, switchable stereo-line/mono-mic, with gain controls, 3-way equalizer, balance controls (pan pot at mic), peak LEDs, and PFL buttons with LED indicators
- 2 stereo channels of similar design, but switchable stereo-phono/mono-mic
- 1 mono DJ microphone channel also with gain control, 3-way equalizer, peak LED, and pre-fader listening button, as well as additionally adjustable automatic talkover
- Fader start for channels 5-8
- 2 stereo master outputs
- 1 stereo monitor output, switchable from master to pre-fader listening of individual input channels
- 2 stereo record outputs
- 100mm fader
- Pre-fader listening to all inputs and outputs via adjustable stereo headphone output
- Stereo VU meter, switchable from master to pre-fader listening (PFL)
- Connection for gooseneck light GNL-404 or GNL-405
Technical Facts Mixers
- Input sensitivity - Mic, mono 3mV
- DJ mic, mono - 3mV
- Line, stereo - 150mV
- Phono, stereo - 3mV
- Outputs
- Master, stereo - 1V/600Ω
- Monitor, stereo - 1V/600Ω
- Record, stereo - 0.775V/600Ω
- Headphones, stereo - ≥ 8Ω
- Frequency range - 20-20,000Hz
- THD - < 0.1%
- S/N ratio
- Mic - 55dB
- Line - 70dB
- Phono - 55dB
- Equalizer
- Bass - ±12dB/100Hz
- Midrange - ±12dB/1kHz
- Treble - ±12dB/10kHz
- Talkover - 0-20dB, adjustable
- Connection for gooseneck light - 12V/5W, 4-pole XLR
- Power supply - 230V˜/50Hz/25VA
- Admiss. ambient temp. - 0-40 °C
- Dimensions - 482x402x127mm, 9RS
- Weight - 7.8kg
|
