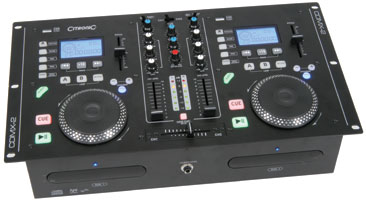

An impressive combination of a dual CD/MP3/USB player, 2 channel mixer and 80W stereo amplifier, all housed in a solid metal case. The dual CD player can play MP3 discs and has 40 seconds of anti-shock, seamless loop, jog and shuttle wheels, it also has a program mode which allows the user to select up to 20 tracks. The 2 channel mixer has rotary controls for setting the high, mid, low frequencies and cue and channel gain, also 60mm channel sliders.
Features:
2 Channel 8 input mixer, 2 X USB, 2 x phono, 2 x line, 2 x mic (Jack/XLR) inputs
19' rack mountable (6U)
60mm channel faders
3 band EQ
Dual 6 LED monitor display
Master and record outputs via RCA phono sockets
Headphone output
Replaceable crossfader
80W stereo amplifier (Outputs via binding posts)
40 Seconds anti-shock memory
Elapsed/remain/total time displayed
Large LCD screens with Blue backlight
Seamless loop
Program mode (20 tracks max.)
Relay/single/continuous play modes
Pitch range ±16%
Pitch bend buttons
Fader start
Disc indicator LEDs
Specification:
Power supply 115/230Vac, 50/60Hz
3 band EQ ±12dB
Antishock 40 seconds
Channel seperation - 85dB (1kHz)
Distortion - <0.02%
Frequency response - 20Hz - 20kHz
Headphone impedance - 32 Ohms
Input : Line - 1V, 10k Ohms
Input : Mic - 10mV, 600 Ohms
Input : Phono - 10mV, 47k Ohms
Output master - 1.9V, 600 Ohms
Output rec - 1.9V, 600 Ohms
Pitch slider - ±16%
Power max. : 8 Ohms - 2 x 80Ws
Signal to noise ratio - >80dB
THD +N - <0.2%
Dimensions - 482 x 260 x 140mm
Weight - 8.5kg
|
