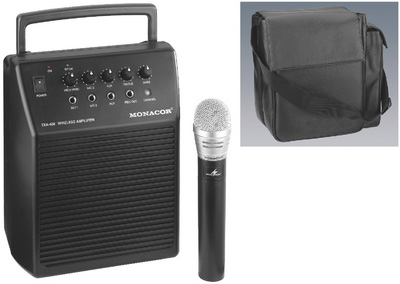

- Portable PA system, ideally suited for mobile applications at sales events, lectures, etc.
- Consisting of an amplifier/receiver unit, a wireless hand-held microphone and a practical shoulder bag
- 2 microphone inputs, 1 line input for CD player or cassette recorder
- Each input with gain control
- Universal power supply of the amplifier/receiver via 230V mains voltage, 12V car battery or 1.5V batteries D size
- Integrated charging feature for rechargeable batteries (1 x 9V battery, 2 x 1.5V battery AA size)
- M8 threaded jack for mounting onto a stand
Specification
- Output power : 20WMAX
- Carrier frequency : 863.05-864.95MHz
- Range : approx. 30m
- Mic input : 2.5mV
- Aux input : 130mV
- Record output : 280mV/100kΩ
- Equalizer
- Bass : ±4dB/200Hz
- Treble : ±5dB/10kHz
- Power Supply
- Amplifier : 230V˜/50Hz/40VA, 12-15V DC current /1A,
2 x 1.5V batt. D size
- Microphone : 9V battery
- Admiss. ambient temp : 0-40 °C
- Dimensions : 220x275x140mm
- Weight : 3.3kg
- Inputs
- Mic : 2 x 6.3mm jack
- Aux : 1 x 6.3mm jack
- Outputs
- Record : 1 x 6.3mm jack
|
