Portable amplifier system,
with integrated adjustable 2-channel multifrequency receiver unit with UHF
PLL technology.
Ideally suited for mobile applications, e.g. guided tours, processions
Robust plastic housing of compact size with carrying handle and carrying
strap
Extra low weight due to built-in rechargeable lithium-ion battery
14.8V/2.4Ah (operating time: up to 2 hours)
Operation via rechargeable battery or supplied switch-mode PSU
Integrated automatic charging of rechargeable battery
2 wireless microphone channels, each with 16 selectable UHF frequencies
(863-865MHz) and volume control
1 microphone input via 6.3mm mono jack, 1 line input via 3.5mm mono
jack, common volume control and tone control
1 mix output via 3.5mm mono jack
9mm ( 3/8 ') stand thread, can be mounted onto a speaker stand with
standard diameter with stand adapter EBH-48 (available at option)
Supplied with practical protective shoulder bag which can stay on during
operation
Licence free in the EU.
Li-ion rech. battery! Thus, the unit has a total weight of 3.2kg only.
Matching microphone transmitters or pocket transmitters TXA-100HT or
TXA-100HSE are available at option.
Technical Facts
Amplifiers Output power50WMAX/36WRMS
Frequency range60-15,000Hz
Carrier frequency863-865MHz
Rangeapprox. 30m
Mic inputs10mV
Line inputs100mV
Mix output560mV
Equalizer±8dB/10kHz
Power supplyrech. batt. 14.8V/2.4Ah,
19V DC current /2.6A via
suppl. PSU 100-240V˜/50-60Hz/180VA
Admiss. ambient temp.0-40 °C Dimensions160x210x290mm
Weight3.2kg

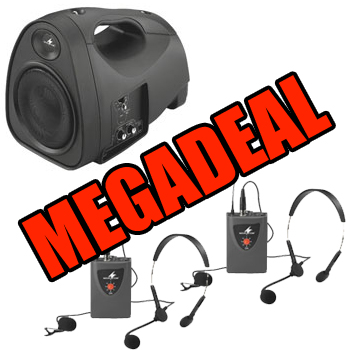

Please note this system come with 2 x headset & tie clip
microphones
|
