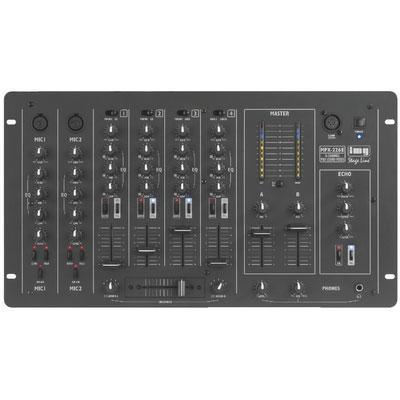

MPX-226E 6-Channel Stereo Mixer
6-channel stereo mixer
4 stereo input channels, switchable line/phono (channels 1-3) and line/line (channel 4), gain controls, 3-way equalizer with cut function
2 microphone channels, each with automatic talkover, gain control and 3-way equalizer
Digital echo function can be switched on additionally for each individual input channel
2 master outputs, 1 record output
LED level display, switchable between both master outputs
Crossfader with assignment switches for channels 1-4
Adjustable headphone output
Connection for gooseneck light GNL-404 or GNL-405
Technical Specification
- Sensitivities
- Mic input 1.5mV
- Phono input 2.5mV
- CD input -
- Line input 100mV
- Effect return -
- Master output 1V/600Ω
- Record output 330mV/600Ω
- Monitor output -
- Effect send -
- Headphone output ≥ 8Ω
- Frequency range 20-20,000Hz THD 0.02%
- S/N ratio > 60dB
- Equalizer
- Bass ±15dB, -30dB/50Hz
- Midrange, L -
- Midrange, H ±15dB, -30dB/1kHz
- Treble ±15dB, -30dB/10kHz
- Talkover -12dB
- Gooseneck light 12V/5W, 4-pole XLR
- Power supply 230V˜/50Hz/12VA
- Dimensions 482x266x110mm, 6RS
- Weight 5.5kg
