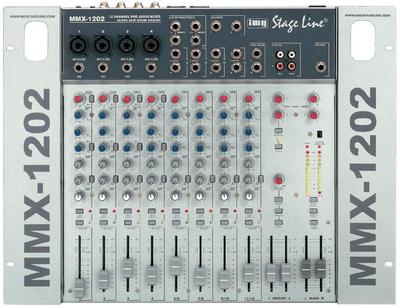

IMG Stageline MMX-1202 8 Channel Audio Mixer with 12 Inputs

IMG Stageline MMX-1202 8 Channel Audio Mixer with 12 Inputs

IMG Stageline MMX-1202 8 Channel Audio Mixer with 12 Inputs (Code: 20.2110) £286.20 inc vat £238.50 ex vat
In Stock!

Name:

Tel:

Email:

Question:


MMX-1202

8-channel audio mixer with 12 inputs

Features:

  • 4 balanced mono input channels, for mic or line, each with gain control, 3-way equalizer, switchable low cut, insert and pan pot
  • 4 balanced stereo input channels, each with gain control, 3-way equalizer and balance control
  • PFL/solo or mute/subgroup function for each input channel
  • PFL for AUX1/2 send
  • 2 AUX ways (AUX1 can be changed internally, AUX2 can be switched) with separate level control for send and stereo return
  • 2 subgroups
  • Peak LED for each channel
  • 1 balanced, 1 unbalanced stereo master output
  • Tape record/play connections
  • +48V phantom power, to be switched for each channel
  • Adjustable headphone output
  • 482mm (19') rack installation with supplied mounting brackets

tastenwelt 01/2006

'The MMX-1202 offers a flexibility which is untypical of its class, extensive features, high level stability, a solid set-up and very good workmanship!'

Technical Facts:

  • Input sensitivity
  • Mic 0.1mV, bal.
  • Line (mono)2mV, bal.
  • Line (stereo)10mV, bal.
  • Tape 250mV
  • Insert60mV
  • Effect return 110mV
  • Outputs:
  • Master 1V, bal.
  • Record 150mV
  • Effect send 1V
  • Ctrl room 950mV
  • Group 1/21.23V
  • Headphones, stereo ≥ 32Ω
  • Frequency range 20-30,000Hz
  • THD < 0.05%
  • S/N ratio81dB, weighted
  • Talkover -80dB
  • Equalizer
  • Bass ±15dB/80Hz
  • Midrange ±15dB/2.5kHz
  • Treble ±15dB/12kHz
  • Power supply 230V˜/50Hz/40VA
  • Dimensions 340x370x90mm, 9RS
  • Weight 5kg
