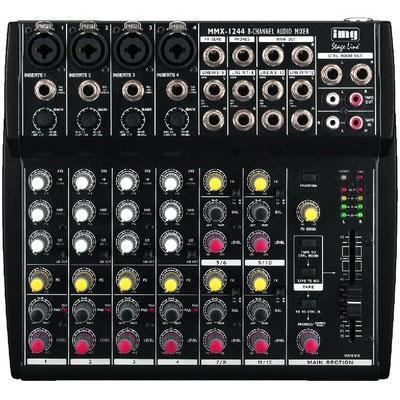

IMG Stageline MMX-1244 8-Channel Mixer with 12 Inputs

IMG Stageline MMX-1244 8-Channel Mixer with 12 Inputs

IMG Stageline MMX-1244 8-Channel Mixer with 12 Inputs (Code: 20.2640) £95.00 inc vat £79.17 ex vat
In Stock!

Name:

Tel:

Email:

Question:

The IMG Stageline MMX-1244 8-Channel Audio Mixer - a fantastic compact mixer ideal for home or professional use.

Features:

  • 4 mono input channels, each with gain control, 3-way equalizer, low cut and pan pot
  • 4 stereo input channels, each with balance control
  • Adjustable FX send output
  • Control room function
  • Inserts for the mono input channels
  • Tape record/play connections
  • +48V phantom power, can be switched centrally
  • Adjustable headphone output
  • Stereo LED level display
  • Power supply via supplied PSU

Technical Specifications:

  • Mic, mono 0.5mV, bal.
  • Line, stereo 60mV, bal.
  • Insert, mono 140mV
  • Tape, stereo 400mV
  • Master, stereo L/R 800mV
  • Control room, stereo 3V
  • Record, stereo 800mV
  • Aux 1, mono 10V (FX send)
  • Headphones, stereo ≥ 8Ω
  • Frequency range 20-20,000Hz
  • THD < 0.04%
  • S/N ratio 91dB
  • Crosstalk -67dB
  • Bass ±15dB/80Hz
  • Midrange ±15dB/2.5kHz
  • Treble ±15dB/12kHz
  • Phantom power +48V
  • Power supply via suppl.
  • PSU
  • Admiss. ambient temp. 0-40 °C
  • Dimensions 245x50x225mm
  • Weight 1.9kg
