FREE UK Delivery 3 year(s) warranty

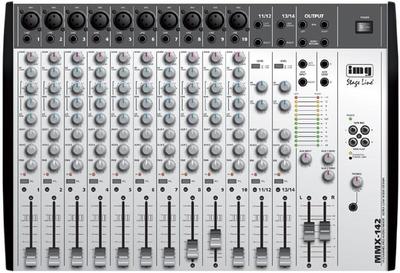

IMG Stageline MMX-142 14 Channel Audio Mixer

IMG Stageline MMX-142 14 Channel Audio Mixer

IMG Stageline MMX-142 14 Channel Audio Mixer (Code: 20.1900) £299.95 inc vat £249.96 ex vat
In Stock!

Name:

Tel:

Email:

Question:


MMX-142

14-channel audio mixer

Features:

  • 10 mono input channels, each with gain control, 4-way equalizer with semiparametric midrange and pan pot
  • 2 stereo input channels with switchable gain control (+4dB/-10dB), 2-way equalizer and balance controls
  • Individual channel strips
  • 2 adjustable aux outputs (pre/post), PFL to all input channels
  • Master insert
  • Adjustable stereo aux input
  • Tape record/play connections
  • +48V phantom power, can be switched centrally
  • Adjustable headphone output
  • 482mm (19') rack installation with supplied mounting brackets

Technical Facts:

  • Input sensitivity
  • Mic, mono 0.2mV, bal.
  • Line, mono 2mV, bal.
  • Line, stereo 54mV, bal.
  • Master insert 330mV, unbal.
  • Tape 250mV, unbal.
  • Aux, stereo 110mV, bal.
  • Outputs:
  • Master, stereo L/R 1.23V/75Ω, bal.
  • Record, stereo 300mV/600Ω, unbal.
  • Master insert 330mV/1Ω, unbal.
  • Aux1 3.2V/100Ω, unbal.
  • Aux2 1.2V/100Ω, unbal.
  • Headphones, stereo 33Ω
  • Frequency range10-50,000Hz
  • THD < 0.1%
  • S/N ratio 84dB, weighted
  • Crosstalk-81dB, weighted
  • Equalizer:
  • Bass ±15dB/60Hz (mono channels)
  • ±15dB/45Hz (stereo channels)
  • Midrange ±15dB/350-6,000Hz (mono channels)
  • Treble ±15dB/12kHz
  • Phantom power +48V
  • Power supply 230V˜/50Hz/25VA
  • Admiss. ambient temp. 0-40 °C
  • Dimensions 465x87x315mm
  • Weight 5.9kg
