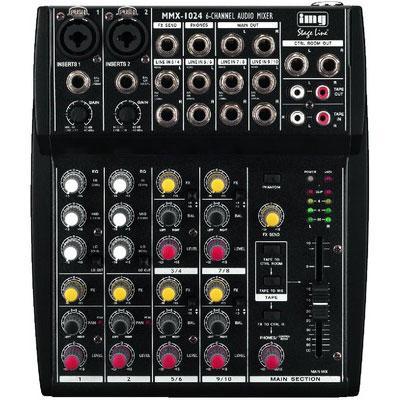

MMX-1024 6-Channel Audio Mixer with Phantom Power

6-channel audio mixer, with 10 inputs.

Features:

• 2 mono input channels, each with gain control, 3-way equalizer, low cut and pan pot
• 4 stereo input channels, each with balance control
• Adjustable FX send output
• Control room function
• Inserts for the mono input channels
• Tape record/play connections
• +48V phantom power, can be switched centrally
• Adjustable headphone output
• Stereo LED level display
• Power supply via supplied PSU

Technical Specifications:

• Mic, mono 0.5mV, bal.
• Line, stereo 60mV, bal.
• Insert, mono 140mV
• Tape, stereo 400mV
• Master, stereo L/R 800mV
• Control room, stereo 3V
• Record, stereo 800mV
• Aux1, mono 10V (FX send)
• Headphones, stereo ≥ 8Ω
• Frequency range 20-20,000Hz
• THD < 0.04%
• S/N ratio 94dB
• Crosstalk -63dB
• Bass ±15dB/80Hz
• Midrange ±15dB/2.5kHz
• Treble ±15dB/12kHz
• Phantom power +48V
• Power supply via suppl. PSU
• Admiss. ambient temp. 0-40 °C
• Dimensions 190x50x225mm
• Weight 1.6kg
