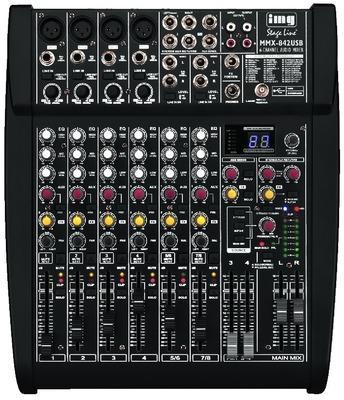

MMX-842USB 6-Channel Mixer with DSP

IMG Stageline 6-channel audio mixer, with 8 inputs, DSP effect unit and USB interface. Plug and mix!

Features:

• Integrated USB audio interface (will be identified and addressed as an external sound card)
• Full duplex USB port (simultaneous recording and reproduction possible) for the reproduction of digital audio data from a PC and for recording mixings onto a PC
• 4 mono input channels, each with gain control, 3-way equalizer, low cut and pan pot
• 2 stereo input channels, each with 3-way equalizer and balance control
• DSP with 100 different effects, e.g. reverb, chorus, flanger, delay, pitch shifter and multi-effects
• 2 subgroups
• Adjustable stereo aux return inputs and FX send outputs
• Control room function
• Inserts for the mono input channels
• Tape record/play connections
• +48V phantom power, can be switched centrally
• Adjustable headphone output
• Stereo LED level display
• Connection for gooseneck light GNL-204 or GNL-205

Technical Specifications:

• Mic, mono 1.6mV, bal.
• Line, mono 9mV, bal.
• Line, stereo 38mV, bal.
• Insert, mono 100mV
• Tape, stereo 250mV
• Aux, stereo 60mV, bal.
• Master, stereo L/R 1.5V, bal.
• Control room, stereo 10V
• Record, stereo 750mV (also subgroups)
• Aux1, mono 10V Aux2, mono 10V
• Headphones, stereo ≥ 8Ω
• Frequency range 20-20,000Hz
• THD < 0.05%
• S/N ratio 89dB
• Crosstalk -63dB
• Bass ±15dB/80Hz
• Midrange ±15dB/2.5kHz
• Treble ±15dB/12kHz
• Phantom power +48V
• Power supply 230V˜/50Hz/40VA
• Admiss. ambient temp. 0-40 °C
• Dimensions 295x115x350mm
• Weight 3.8kg
