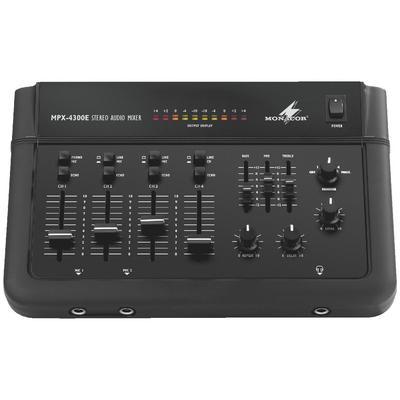

Monacor MPX-4300E Stereo Audio Mixer

Features:

• 4 stereo channels, switchable phono/mono mic (channel 1) and line/mono mic (channels 2+3) as well as line/line (channel 4)
• 1 master, 1 record
• Digital echo, effect and delay can be adjusted. Each input channel can be switched separately to the echo circuit
• 3-way equalizer
• Pre-fader listening via adjustable headphone output
• Stereo LED level control

Technical Specifications:

• Inputs:
• 3 x mic, mono 1.5mV
• 1 x phono, stereo 3mV
• 4 x line, stereo 150mV
• Outputs:
• 1 x master, stereo 0.775V/600Ω
• 1 x record, stereo 0.775V/600Ω
• 1 x headphones ≥ 8Ω
• Frequency range 20-20,000Hz
• THD 0.1%
• S/N ratio 55dB
• Equalizer:
• 1 x bass ±12dB/100Hz
• 1 x midrange ±12dB/1kHz
• 1 x treble ±12dB/10kHz
• Echo 30-300ms
• Power supply 230V˜/50Hz/5VA
• Admiss. ambient temp. 0-40 °C
• Dimensions 270x180x45mm
• Weight 1.2kg
