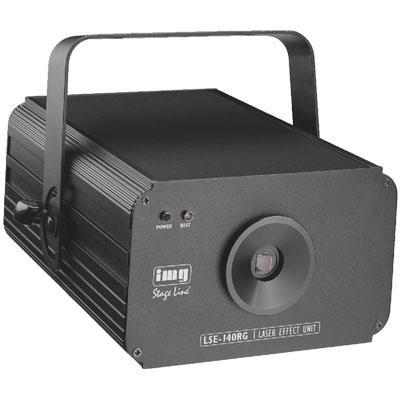

IMG Stageline LSE-140RG Show Laser effect Unit

with a red laser and a green laser as well as a control facility via DMX or sound.

With stepper motors. Generates various rotating effects of light spots and lines (comparable to a mirror ball effect). Numerous extra effects via additional motor.

• 2 laser diodes: red (100mW), green (40mW)
• Class 3b laser
• 11 DMX control functions: (channel 1: mode, channel 2: rotational speed of motor 1, channel 3: rotating direction of motor 1, channel 4: libration range of motor 1, channel 5: libration mode of motor 1, channel 6: rotational speed of motor 1, channel 7: rotating direction of motor 2, channel 8: libration range of motor 2, channel 9: libration mode of motor 2, channel 10: colour, channel 11: strobe)
• Music-controlled via integrated microphone, adjustable sensitivity
• Master/slave function for simultaneous operation of several units
• 11 stand-alone automatic modes and sound modes
• Address can be adjusted via menu buttons, indication via LED display
• Key-operated switch for a safe operation
• Connection jack for external emergency stop switch, available at option
• Power supply: 230V˜/50Hz/25VA
• Dimensions of unit: 280x175x110mm
• Weight: 2.6kg

The accessible laser radiation is hazardous to the human eye, often also to the skin! It is dangerous to look directly into the beam of class 3b lasers. It may be possible to view a beam safely via a diffusing reflector.
When using a class 3b laser, the operator has to appoint a laser safety officer in writing (BGV B2 = German Accident Prevention & Insurance Association regulation B2)! Laser safety officers must have requisite qualifications!
An approval is required for class 3b lasers!
