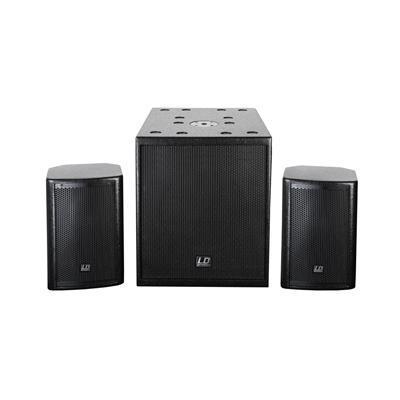

LD Systems DAVE10 Generation 2 - 10' Active PA - 350W

LD Systems DAVE10 Generation 2 - 10' Active PA - 350W

LD DAVE G2 Series - The next generation of portable PA. More beautiful, more compact, more flexible, more sturdy and more secure. Small but impressive! With powerful sound and clearly defined mid and high frequencies, the DAVE 10 provides a portable sound experience. The compact, very flexible active system has various practical features, like the 5° inclinated Satellite Speakers providing an optimal acoustic irradiation, butterfly handles and an optional castor board. DAVE 10 is an ideal tool for entertainers, duos and all smaller PA system and presentation applications, with an excellent price-performance ratio. The DAVE 10+ active module features all necessary inputs and outputs as well as protective circuits. Transport bags, for the subwoofer and satellites, are also available. From now on the subwoofer is equipped with a M20 thread.

Features:

• Model Name: LDDAVE10G2
• Type:
• Subwoofer: Bass Reflex
• Satellites: Sealed
• Components:
• Subwoofer: 10' Custom Made
• Satellites:
• LF: 5,25' Custom Made
• HF:1' Custom Made
• Amplification: Class A / B
• Dispersion: 70° x 70°
• Power Output (RMS):
• Subwoofer: 150 W
• Satellites: 2 x 100 W
• Frequency Range: 45 Hz - 19 kHz
• SPL (1 W / 1 m): 97 dB
• Max SPL: 119 dB
• Protection: Short circuit, Over-current
• Controls: Volume, Sub Level, 180° Phase Reverse, On / Off Switch
• Indicators: Power, Protect

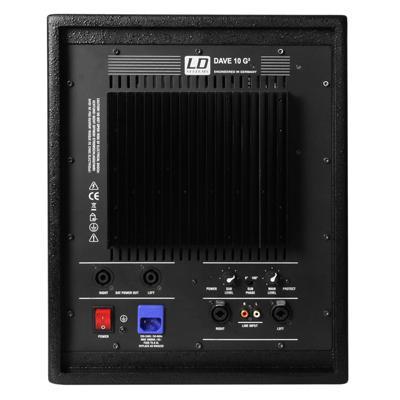

• Connectors:
• Subwoofer:
• Input: Line: XLR + Jack 6,3 mm Combo, RCA Phono
• Output: SPKn: Powered output for passive Satellites
• Satellites:
• Input: SPKn
• Cooling system: Heatsink
• Power supply: Transformer
• Cabinet Material:
• Subwoofer: 15 mm MDF
• Satellites: 15 mm MDF
• Cabinet Surface: Painting
• Dimensions:
• Subwoofer: 345 x 430 x 460 mm
• Satelliten: 200 x 300 x 230 mm
• Weight:
• Subwoofer: 21 kg
• Satelliten: 5 kg
• Features:

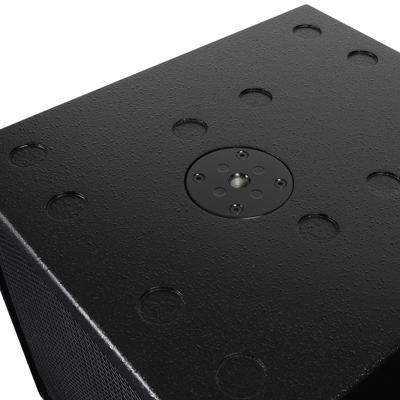

• Subwoofer: Ergonomic milled handles, Threaded flange (M20), Limiter, Volex Power Plug
• Satelliten: Ergonomic milled handles, Stand support (5° sloped)
