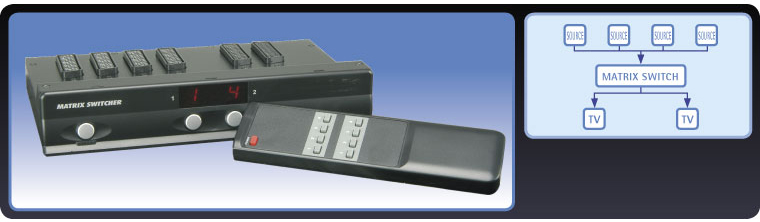

4 x 2 AV Scart Matrix Switcher With IR Remote Control
An innovative matrix switcher with 4 individual SCART AV inputs and 2 SCART AV outputs, which is ideal for complex AV entertainment setups. Any or all of the 4 inputs can simultaneously be switched to either or both of the 2 outputs. Suitable for TV, VCR, DVD, satellite etc.
SCART signals for RGB, composite video and stereo audio
Manual or IR remote control operation
Compatible with SCART 1 and 2
Auto-scan screen 4:3, 16:9
Metal case with non-slip feet
Supplied with a 2m SCART lead and mains adaptor
Channel selected is indicated by a clear LED display
Packed in a full-colour gift box
Power supply 12Vdc, 800mA
Distortion:Audio <0.6dB
Distortion:Video <1.2dB
Weight 883g
Audio input 4 x 10k ohms, 4.5V (p-p)
Dimensions 240 x 153 x 45mm
Video input 4 x 75 ohms, 1V (p-p)
Channel separation >50dB
Video bandwidth >250MHz (±3dB)
Audio output 2 x 10k ohms
Video output 2 x 75 ohms, 1V (p-p)
Signal to noise ratio >50dB
Remote:Battery 3Vdc (2 x AA)
|
