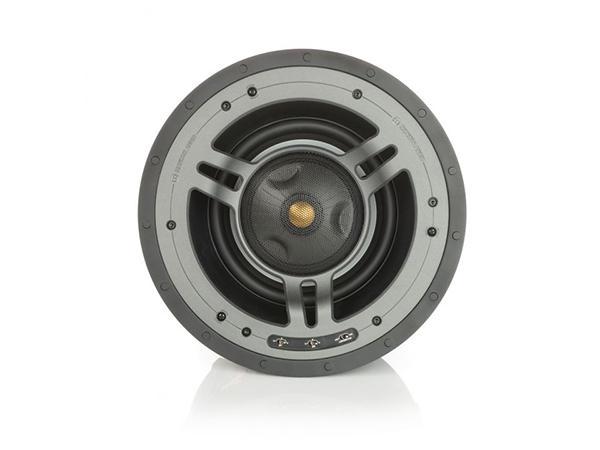

Monitor Audio CP-CT380IDC 8" Ceiling Speaker (Single)

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4" C-CAM inverted midrange driver surrounding a 25 mm C-CAM Gold Dome tweeter.

Specification:

• Frequency Response - 50 Hz - 30 kHz
• Nominal Impedance - 6 ohms
• Sensitivity (1W@1M) - 89 dB
• Maximum SPL - 109.6 dBA
• Power Handling (RMS) - 120 W
• Recommended Amplifier Requirements - 30 - 120 W
• Crossover Frequency - Bass low pass: 300 Hz @ 6 dB / Octave, Mid: 300 Hz @ 6 dB / Octave & 3 kHz @ 12 dB / Octave
• Drive Unit Complement - 3-Way, 8" C-CAM RST cone bass driver, 4" C-CAM IDC cone mid range driver, 1" C-CAM Gold Dome tweeter (tweeter & midrange driver combined in a pivoting module)
• Adjustment Controls - HF Level Switch (+3 dB / 0 dB / -3 dB), MF Level Switch (+ 3dB/ 0 dB/ -3 dB), Boundary Compensation Switch
• Overall Diameter (Including Grille) - 309 mm (123/16")
• Overall Depth (Including Grille) - 187 mm (73/8")
• Cut-Out Hole Diameter - 274 mm (1013/16")
• Mounting Depth - 181 mm (71/8")
• Fixing Type - 3 position Tri-Grip dog leg fixings
• Construction Material - Mineral Filled ABS Plastic (RoHS2 Compliant)
• Connection - Gold plated 'push' type terminals
• Weight - 4.3 kg (9 lb 8 oz)
