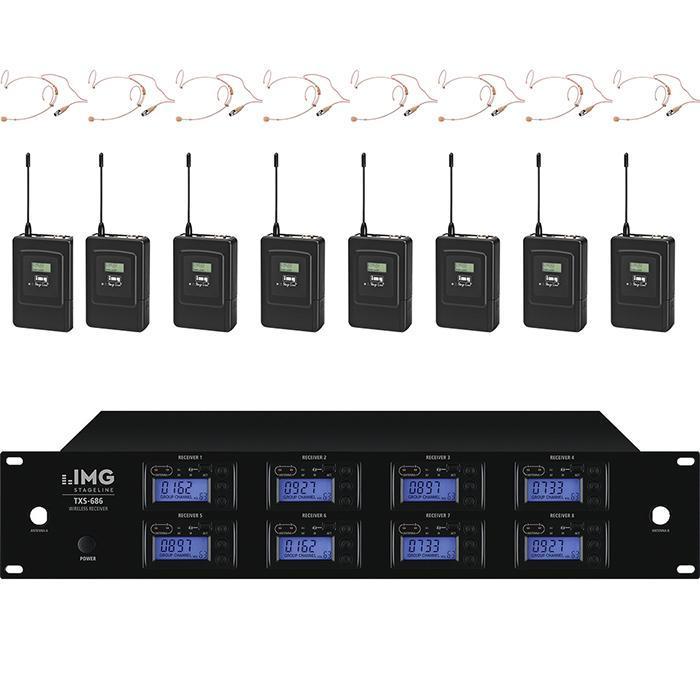

Octo Wireless Microphone System With 8 x Headset Microphones

High Quality Wireless Microphone System from IMG Stageline Features 1 x 8 Channel Receiver Unit with 8 x Balanced XLR Outputs and 1 x 6.3mm Mono Summing Output (combines all channels together), 8 x Body Pack Transmitters with Mini XLR Inputs and 8 x Skin Coloured Headset Microphones.

Setup is easy using the ACT function. Simply press the 'ACT' button on the receiver and point the IR sensor on the Body Pack Transmitter at it and the frequencies are matched instantly.

Ideal for Schools, Churches, Bands and Vocal Harmony Groups.

Technical Specifications (TXS-686 Receiver):

• Co-ordinated licence (672,000-696,975 MHz)
• RF S/N ratio 105dB
• Audio frequency range 30-18,000Hz
• THD < 0.5%
• Dynamic range 100dB
• Audio output 350mV/600Ω (jack)
• 25mV/600Ω (XLR, bal.)�
• Admiss. ambient temp. 0-40 °
• Power supply via suppl.
• Plug-in PSU
• Dimensions 482x90x310mm
• Weight 4.4kg

Technical Specifications (TXS-606HSE)

• Co-ordinated licence (672,000-696,975 MHz)
• Transmitting power 25 mW
• Audio frequency range 30-18,000 Hz, ±3 dB
• Frequency stability ±0.005 %
• Operating time > 8 h
• Dimensions 61x106x27 mm
• Weight 96g

Technical Specifications (HSE-150/SK)

• System back electret/omni-directional
• Frequency range 20-20,000 Hz
• Impedance 1 kΩ
• Sensitivity 8 mV/Pa/1 kHz
• Max. SPL 130 dB
• Power supply 1.5-9 V DC current
• Admiss. ambient temp. 0-40 °C
• Weight 7g
• Connection 3-pole mini XLR
