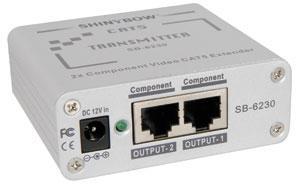

SB-6230 CAT5 Component Video (RGB) Transmitter

The SB-6230 CAT5 Component Video (RGB) Transmitter is compact transmitter with a dual CAT 5 output for sending component video signals (YPbPr, RGB) up to 1000ft (300m) to a CAT 5 receiver. The Transmitter features an LED power ON indicator and gold plated colour coded RCA phono sockets.

Features:

• Inputs via gold plated, colour coded RCA phono sockets
• Easy to install and highly reliable
• 2 x RJ-45 output sockets
• Brushed aluminium case with mounting brackets
• LED power ON indicator
• Supplied with mains adaptor
• Supports HDTV resolution 480p, 720p, 1080i
• For use in conjunction with the CAT 5 receiver (128.658)
• Can connect to 2 x CAT 5 receivers
• Auto tint and brightness control

Technical specification:

• Power supply 12Vdc, 300mA
• Distortion -80dB total harmonic @ 1 MHz: Rl = 100 ohms
• Video input level 1.45V (p-p) max.
• Video bandwidth 450MHz, -3dB
• Slew rate 1600V/µs
• Dimensions 78 x 70 x 26mm
• Weight 550g
