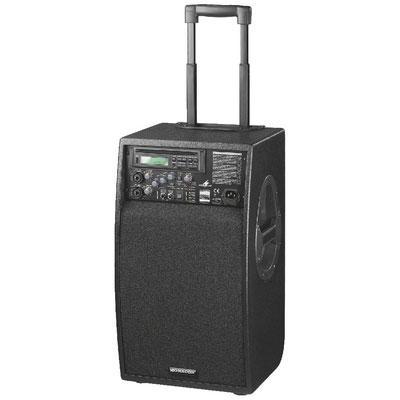

TXA-900CD 50W Portable PA System With Wireless Receiver And CD Player

The TXA-900CD Portable PA System is High Quality Cabinet ideal for use in Schools. It has a built in fixed channel UHF Receiver for connection of a single wireless microphone available at an option (see bottom of page). In addition it had a CD Player, USB Reader, 2 Combo Mic Inputs and Bass Boost Function.

• Operation via mains connection or built-in rechargeable lead gel battery 12V/7Ah (operating time: up to 8 hours), integrated automatic charging of rechargeable battery For mobile applications, e.g. at speeches, lectures, sales events
• High-quality CD player with slot-in mechanism, USB connection for external storage media, reproduction of audio CDs, CD-Rs, MP3 CDs, high-speed access
• 2-way speaker system with professional PA speakers Very high efficiency
• 2 inputs (channels 1+2) via comb. jacks mic (XLR)/line (6.3mm), gain controls, 3-way equalizer, bass boost function
• Link connections (2 x 6.3mm jack) for the combination of several amplifier systems TXA-900CD
• Due to the built-in extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
• Wooden cabinet of perfect workmanship
• Lateral recessed carrying handles
• Stand sleeve
• Supplied with practical protective bag

Operates within DR70 which is License-free in the EU.

• Output power 75WMAX/50WRMS
• Frequency range 60-19,000Hz
• Carrier frequency 863.05MHz
• Operating range approx. 30m
• Sensitivities
• Mic inputs
• 2.5mV
• Line inputs 130mV
• Link 740mV
• Equalizer, bass ±12dB/40Hz
• Equalizer, midrange ±6dB/1kHz
• Equalizer, treble ±12dB/12kHz
• Power supply 230V˜/50Hz/40VA,
• Rech. battery: 12V/7Ah
• Admiss. ambient temp. 0-40 °C
• Dimensions 310x560x285mm
• Weight 13.9kg
