Audac COM6 PA Amplifier 100V/70V/25V & 4 Ohm - 60W
The Audac COM6 PA Amplifier is a public address amplifier with a power up to 60 Watt. It contains 2 unbalanced stereo line level inputs, which are switchable between Line and Microphone level and one Microphone level Input.
This way, a maximum of 3 balanced microphones can be connected. The output level is selectable between high impedance 100V, 70V and 25V outputs, or 4 Ohm low impedance.
It is equipped with an advanced protection circuit, which protects against DC short circuit, overheating, overload and limits the signal when necessary.

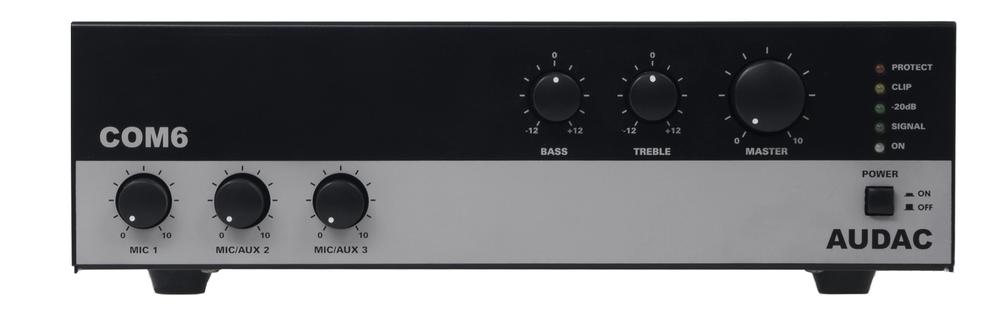

All control functions such as individual channel volume controls, a 2 band tone control, the master volume control and indicators like a VU LED bar and clipping LED’s are located at the front of the amplifier.
Technical specifications:
- Rated Power RMS 60 watt
- Input sence Mic 1-3 .-50 dB to -6 dB varaible 20 Kohm Balance
- Input sence Aux 2-3 .-30 dB to + 14 dB varaible 47 Kohm Unbalance
- Input sence Tele paging 0 dB 600 Ohm Balance
- Output Level:
- 100 V (166 Ohm)
- 70 V (83 Ohm)
- 25 V (10 Ohm)
- 15,5 V (4 Ohm)
- Freq Responce (-3dB) 50 Hz - 15 KHz
- T.H.D. (1 KHz rated power) < 1 %
- Signal to noise ratio > 100 dB
- Power source AC 235 V 50/60 Hz
- Net Weight 6 KG
- Dimensions (W x H x D) 270 x 76 x 230 mm
