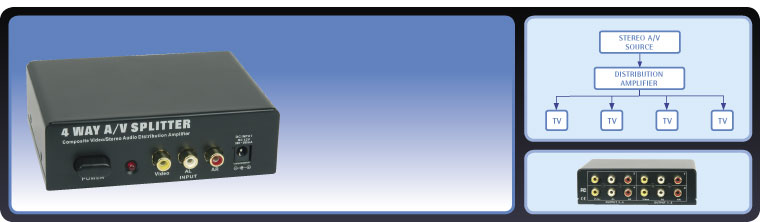

A compact 1 x composite video/stereo audio in to 4 x composite video/stereo audio out distribution amplifier.
Ideal for distributing signals from VCR, DVD, video game console, satellite receiver, etc. to up to 4 screens
Gold plated RCA phono sockets
Non-slip feet
Supplied with mains adaptor and a 2m, 3 x RCA to 3 x RCA lead
Push On/Off switch and LED power ON indicator
Power supply 12Vdc, 300mA
Dimensions 130 x 109 x 42mm
Weight 418g
Distortion:Audio <0.6dB
Audio input -20dB, 25k ohms
Distortion:Video <1.2dB
Video bandwidth >10MHz
Video input 1 - 2V (p-p), 75 ohms
Audio output 4 x -20dB, 25k ohms
Video output 1V (p-p), 75 ohms
Channel separation >50dB
Signal to noise ratio >50dB
|
