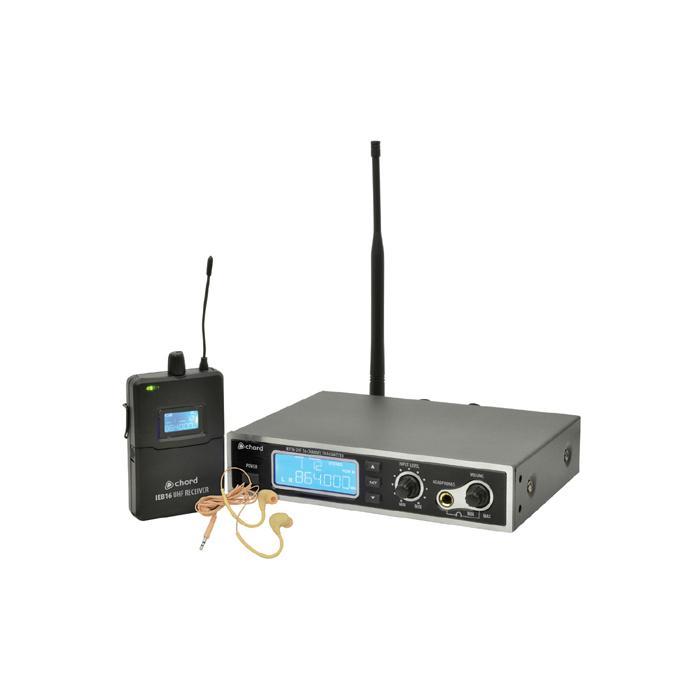

16-channel PLL UHF Stereo In-Ear Monitoring System

#171.892UK

£239.00 inc vat
£199.17 ex vat
delivery time Want it Tuesday, 11th Aug?
Order within -:- and choose next-day delivery

16-channel PLL UHF Stereo In-Ear Monitoring System

16-channel PLL UHF stereo in-ear monitoring system to enable a performer to hear a monitor mix directly via in-ear headphones. Eliminates the need for stage monitors and delivers faultless foldback with freedom of movement. Also, any number of beltpacks can receive from a single transmitter, allowing groups to use this system for conference, training and translation applications.

Features:

  • UHF 16-channel PLL synthesized
  • Backlit LCD display on transmitter & receiver
  • Stereo or Mono operation
  • Professional in-ear headphones included
  • Additional wired headphone output (6.3mm jack)
  • Balanced line inputs (2 x combo)
  • 19" rack mounting kit included
  • 171.895UK aerial lead available for front rack mounting

Specification:

  • Carrier frequencies - 863.1 - 864.9MHz (16 channels)
  • Frequency stability - 0.005% PLL
  • RF output power - 30mW
  • Bandwidth - 24MHz
  • S/N ratio - >105dB
  • THD - <0.4% @ 1kHz
  • Frequency response : 3dB - 40Hz - 16kHz
  • Max. range - 50m
  • Power supply : transmitter - 12-18Vdc, 300mA (adaptor included)
  • Settings : transmitter - Group (1), channel, lock, power, mono/stereo
  • Controls : transmitter - Power, set, up/down, input level, phones volume, pad
  • Dimensions : transmitter - 44 x 210 x 175mm
  • Connections: Transmitter - DC in, antenna (BNC), combo input L + R, phones out
  • Weight : transmitter - 1.05g
  • Power supply : beltpack receiver - 3Vdc (2 x AA batteries supplied)
  • Controls : beltpack receiver - On / volume, esc, up/down, set
  • Settings : beltpack receiver - Balance, group (1), channel, lock
  • Connections: beltpack receiver - 3.5mm stereo jack
  • Dimensions : beltpack receiver - 110 x 65 x 25mm
  • Weight : beltpack receiver - 98g (no battery)
In stock In stock For fast dispatch
1 year(s) warranty 1 Year Warranty On this product
Need help? Need Any Help? Ask a question
Delivery Free UK Delivery
Returns Hassle-free returns mean that you can shop in confidence that if you need to return an item, it's easy.
