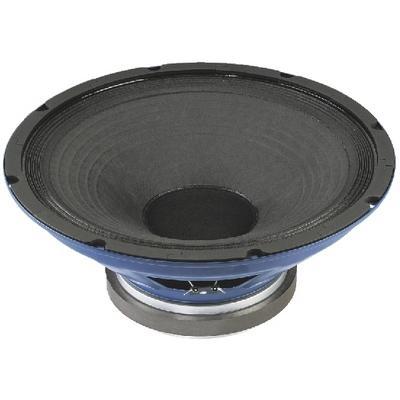

IMG Stageline SP-38/300 PA Bass Speaker 600W Max. 8ohm 15"

#10.3380

PA bass speaker, 600WMAX, 8ohm

With exceptionally high efficiency and optimum balance of all characteristics, suitable for bass and bass-midrange applications in very compact bass-reflex cabinets for all PA applications.

This speaker is almost a new standard among the high-quality 15" PA speakers.

Technical Specification

  • Impedance (Z) 8ohm
  • Resonant frequency (fs) 48Hz
  • Max. frequency range f3-4,000Hz
  • Music power 600WMAX
  • Power rating (P) 300WRMS
  • SPL (1W/1m) 99dB
  • Suspension compl. (Cms) 0.21mm/N
  • Moving mass (Mms) 78g
  • Mech. Q factor (Qms) 5.68
  • Electr. Q factor (Qes) 0.24
  • Total Q factor (Qts) 0.23
  • Equivalent volume (Vas) 213 l
  • DC resistance (Re) 5.9ohm
  • Force factor (BxL) 22.0Tm
  • Voice coil induct. (Le) 1.2mH
  • Voice coil diameter 76mm
  • Voice coil former Kapton
  • Linear excursion (XMAX) ±4mm
  • Eff. cone area (Sd) 855cm2
  • Magnet weight 2.6kg
  • Weight 8.5kg
This item has been discontinued Item has been discontinued
3 year(s) warranty 3 Year Warranty On this product
