2-Way Audio/Video Distribution Amplifier

#128.506UK

£82.80 inc vat
£69.00 ex vat
delivery time Want it tomorrow?
Order within -:- and choose next-day delivery

2-Way Audio/Video Distribution Amplifier

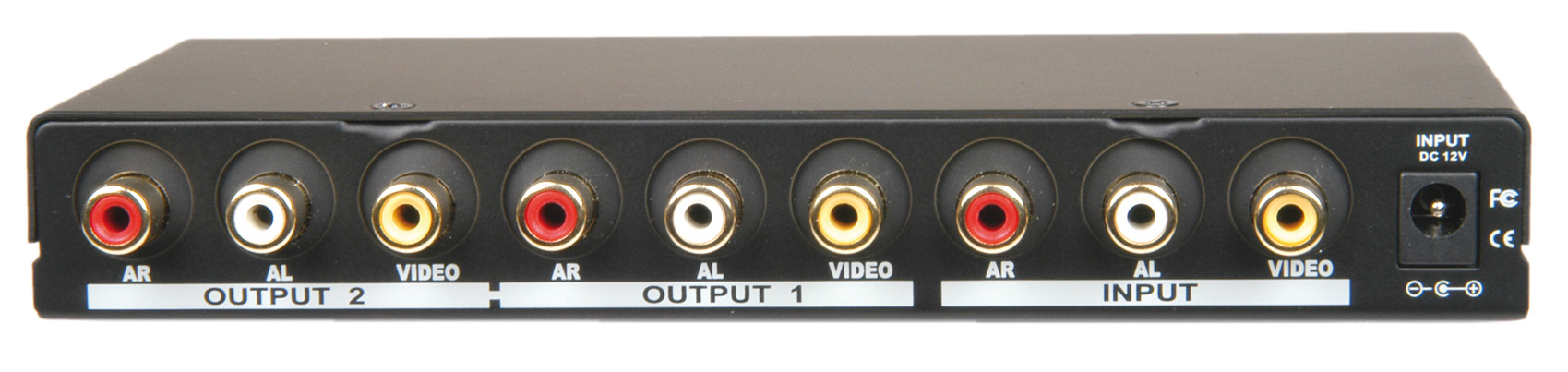

The 2-Way Audio/Video Distribution Amplifier is a composite video and stereo audio signal distribution amplifier with 1 input and 2 outputs. Can be used in applications such as splitting a DVD player out to two TVs to display high quality pictures.

Features:

  • RCA phono socket connectors
  • Gold plated contacts for optimum signal transfer
  • Compact, low profile black metal case
  • On/Off switch with integral LED
  • Mains adaptor supplied

    AUDIO/VIDEO DISTRIBUTION AMPLIFIER

Technical specification:

  • Supplied in gift box
  • Power supply 12Vdc, 300mA
  • Video input Composite video, 75 ohms
  • Audio input Stereo R/L, -20dB, 47K ohms
  • Video outputs 2 x composite video, 75 ohms
  • Audio outputs 2 x stereo R/L, -20dB 47K ohms
  • Video bandwidth >150MHz
  • Video distortion Audio distortion Channel isolation >50dBS/N ratio >50dB
  • Dimensions 176 x 90 x 27mm
  • Weight 367g

In stock In stock For fast dispatch
