The 8 Ohm 6.5" Ceiling Speaker is engineered to deliver superior sound performance for commercial and residential installations. It is ideal for subtle background audio in retail stores, offices, hospitality venues, and home environments. Its powerful output, clean frequency response, and robust construction make it suitable for both speech and music playback.

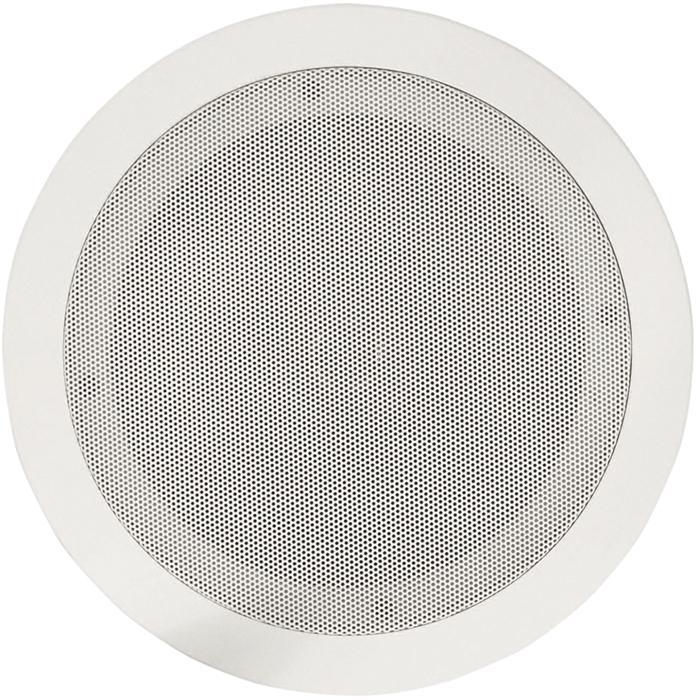

This ceiling speaker features a durable polypropylene cone with a coaxially mounted 13mm tweeter, encased in a white ABS chassis. It has a compact yet sturdy structure, complemented by a 229mm diameter grille that integrates neatly into standard ceiling cut-outs. The lightweight design (1.8 kg) and shallow 74mm mounting depth allow for easy installation, even in restricted ceiling spaces.
| Specification | Details |
|---|---|
| Speaker Type | Ceiling, 2-Way Coaxial |
| Impedance | 8 Ohms |
| Power RMS | 60W |
| Rated Power | 120W |
| Peak Music Power | 250W |
| Tweeter Size | 13mm |
| Frequency Response | 60Hz - 20kHz |
| Sensitivity | 89 dB (1W/1m) |
| Tappings | 2.5, 5, 10, 15, 20W + 8 Ohm |
| Cut-Out Diameter | 193mm |
| Mounting Depth | 74mm |
| Overall Dimensions | 80 x 229 x 229 mm |
| Net Weight | 1.8 kg |
| Colour | White |
This ceiling speaker delivers consistent, full-range audio with high sensitivity and power capability, suitable for music and speech. Its shallow mounting depth and wide dispersion angle make it ideal for suspended ceilings or partition walls.
Q: Is this speaker suitable for use in public buildings?
A: Yes, its power taps and impedance options make it ideal for 100V line and 8 Ohm installations in commercial and public settings.
Q: Can I install this speaker in a suspended ceiling?
A: Absolutely, the 74mm mounting depth makes it ideal for shallow ceiling cavities.
Q: What amplifier should I use?
A: Use a compatible 100V line amplifier for tapped settings, or an 8 Ohm output for direct mode.
Q: Does it come with a grille?
A: Yes, a white flush-fit grille is included to match standard ceiling finishes.
Q: Is this speaker sold individually?
A: Yes, the unit is sold as a single speaker.
