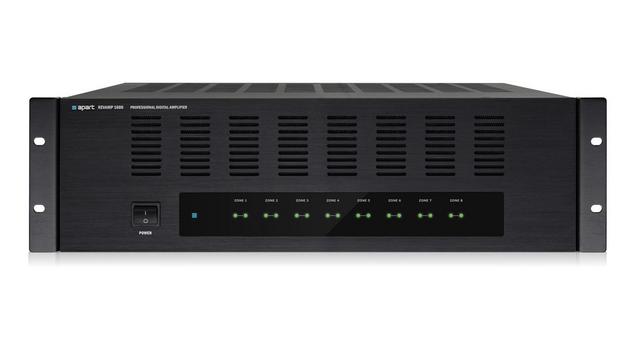

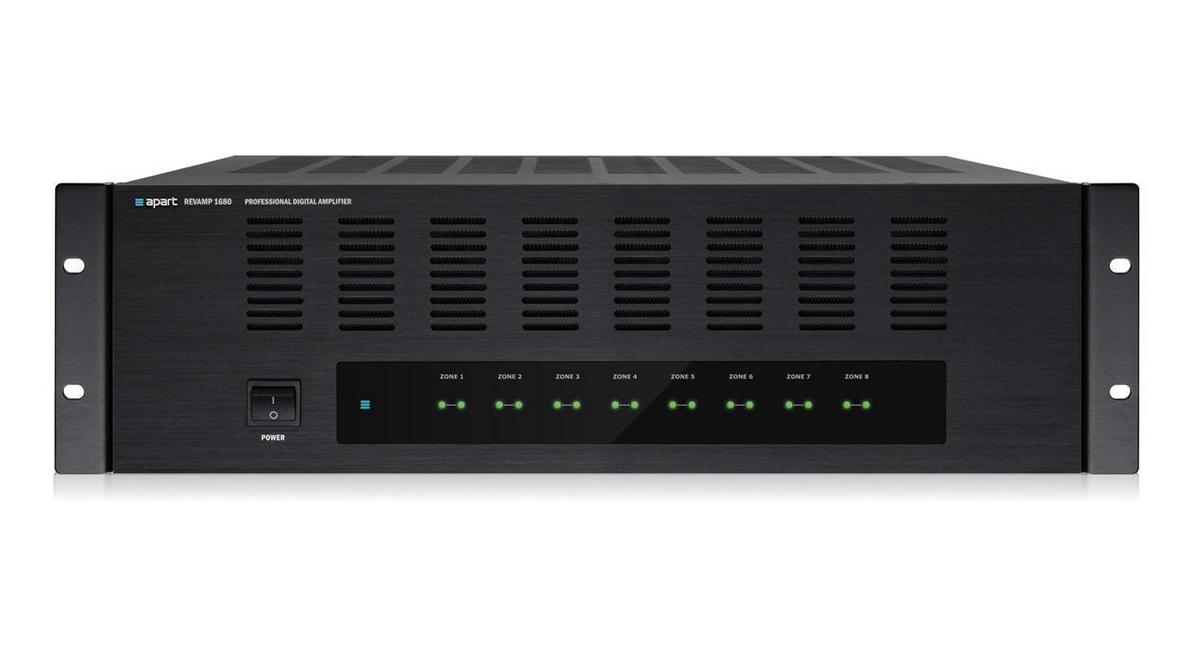

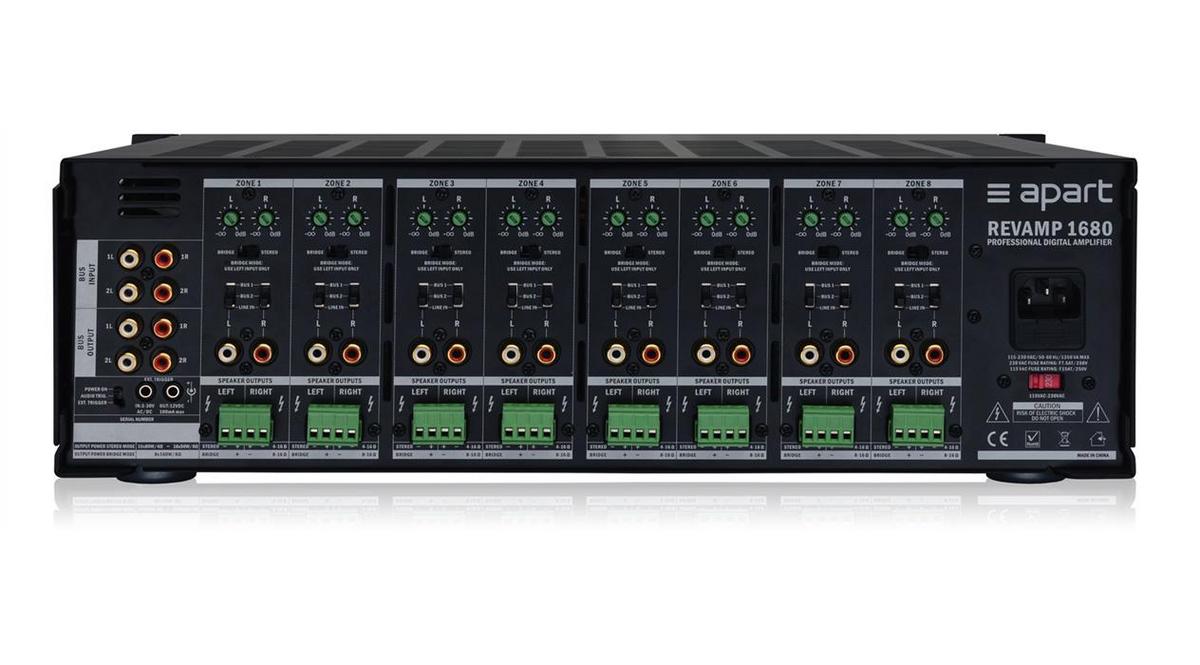

Apart Audio REVAMP1680 16 Channel Power Amplifier 16 x 80W

The REVAMP 1680 is a 16 channel digital power amplifier. It can be used in 8 Channel Bridged Mono mode (8 x 160W RMS @ 8 Ohms) or standard Stereo Mode (16 x 80W RMS @ 4 Ohm or 16 x 40W RMS @ 8 Ohm).

Specifications:

• RMS output power 4 ohms 16 x 80 watts
• RMS output power 8 ohms 16 x 40 watts
• RMS bridged 8 ohms 8 x 160 watts
• minimum impedance load per channel 4 ohms
• minimum impedance load bridged per channel 8 ohms
• power consumption (max) 1350 watts
• 19" (483 mm wide) rack mounting yes
• height- rack units (1U=44 mm) 3 U
• depth (build in) 405 mm
• depth (incl front) 421 mm
• power supply 115 - 230 VAC
• power supply technology toroidal transformers
• output channels 16
• line input unbalanced 20
• channel separation > 68 dB @ 1 kHz
• power amp topology class-D
• frequency response (in Hz) 20 - 30 k
• Net weight product (kg) 21.70
