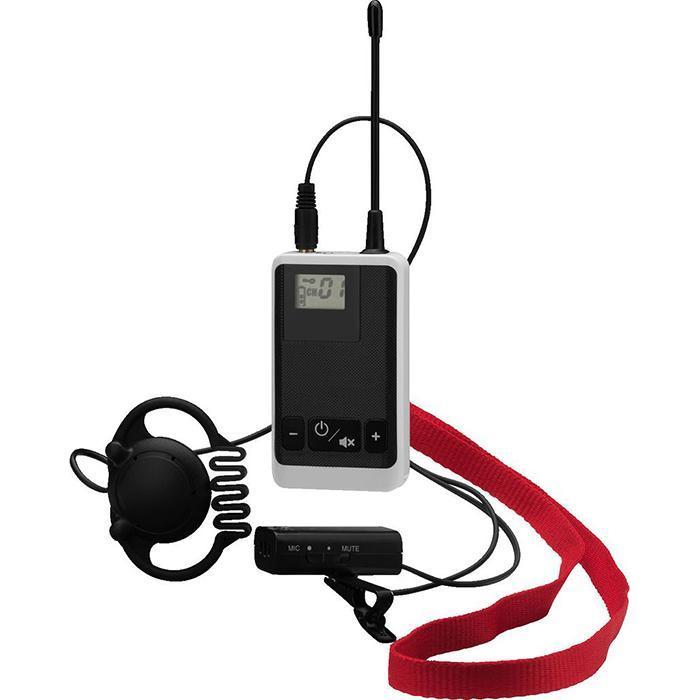

The ATS‑22T from Monacor is a 16‑channel digital miniature transmitter operating in the licence‑free 863‑865 MHz EU band. Engineered for tour guide systems, training scenarios, and educational settings, it enables seamless voice transmission to multiple receivers with minimal interference. Designed for intuitive operation and robust performance, it pairs perfectly with the ATS‑22R receiver to provide optional intercom functionality, and is supplied with a headset for immediate use.
Compact and lightweight at only 37 g, the ATS‑22T offers exceptional portability and comfort for extended use. Its durable construction suits professional indoor environments, while the sleek housing incorporates a user-friendly LCD channel display, mute control, and intercom activation switch. Powered by a built-in rechargeable lithium battery, the unit charges conveniently via micro‑USB. Note: It is not water-resistant and should be used in dry, temperature-controlled settings between 0-40 degreesC.
| Category | Specification |
|---|---|
| Product Type | Digital miniature transmitter |
| Frequency Range | 863-865 MHz (licence-free) |
| Transmission Power | ≤ 10 mW (EIRP) |
| Operating Range | Approx. 70 metres |
| Battery Life | > 12 hours |
| Power Supply | 3.7 V / 600 mAh lithium battery (integrated) |
| Charging Method | Micro‑USB (ATS‑12CB / ATS‑35CB / standard USB) |
| Inputs | 3.5 mm jack (headset/mic/line-in) |
| Dimensions (W × H × D) | 40 × 80 × 12 mm |
| Weight | 37 g |
| Operating Temperature | 0-40 degreesC |
The ATS‑22T performs reliably across a variety of controlled indoor environments, offering crystal-clear digital voice transmission with minimal delay. The easy-to-navigate LCD interface supports fast channel switching and intercom toggling. With over 12 hours of operation, it handles full-day use without interruption, and its 70 metre range is ample for guided tours, classroom settings, and mobile lectures.
Q1: Can multiple ATS‑22T transmitters operate together?
Yes, up to four units can operate simultaneously on different channels without interference.
Q2: Is the ATS‑22T suitable for outdoor use?
It is not designed for outdoor use. Avoid exposure to moisture and use only in dry, indoor spaces.
Q3: How long does the battery last?
The built-in battery delivers over 12 hours of continuous operation on a single charge.
Q4: What charging options are available?
It charges via micro‑USB and is compatible with ATS‑12CB, ATS‑35CB, or any standard USB charger.
Q5: Does it support two-way communication?
Yes, when used with the ATS‑22R receiver, the intercom function is activated for full-duplex communication.
