The Audac CS75 is a premium 2-way ceiling speaker engineered for high-fidelity background music and clear voice reproduction across commercial, retail, and residential environments. With compatibility for both low-impedance (8 Ohm) and 100V line systems, it provides enhanced versatility for integrators and installers.

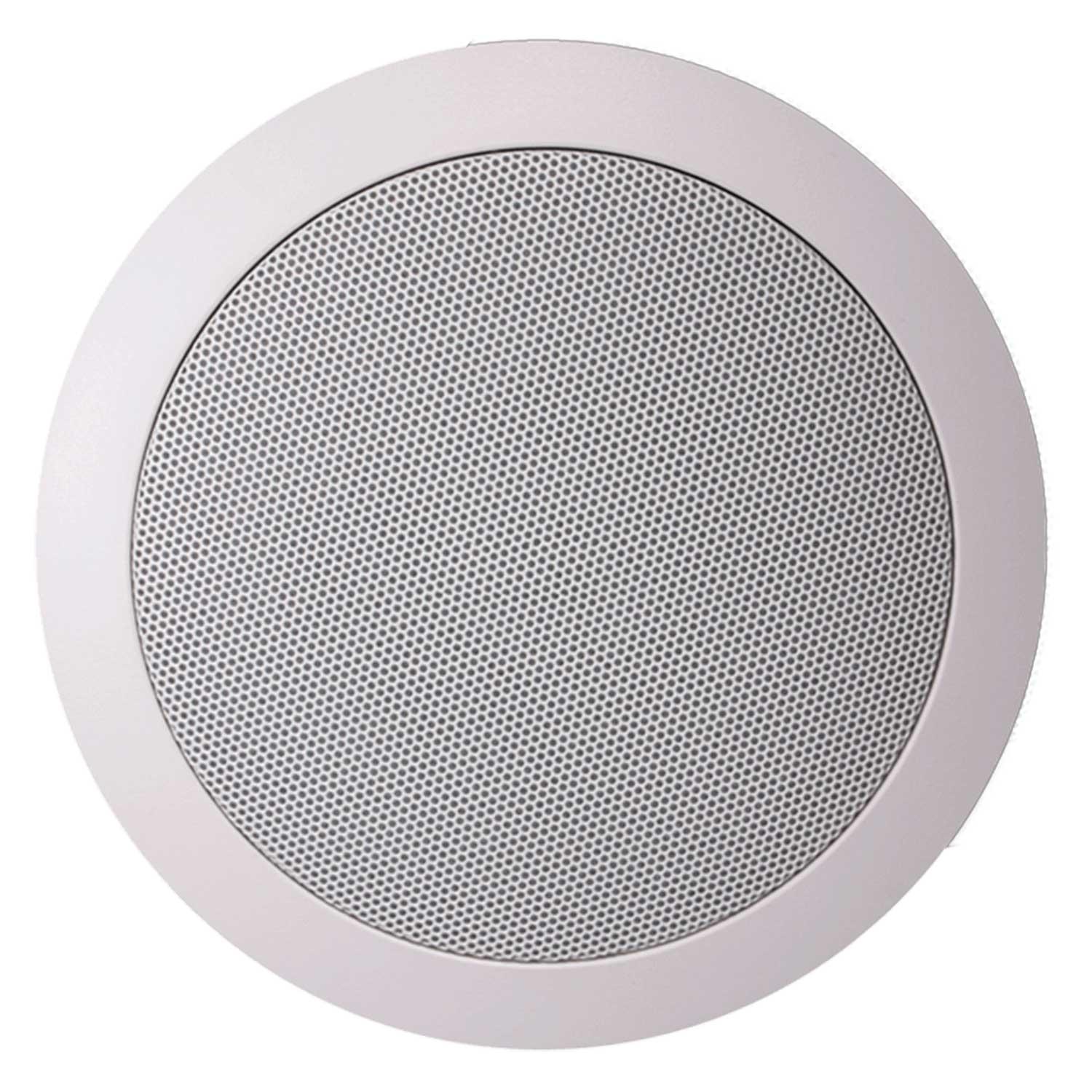

Designed to blend seamlessly into ceilings, the CS75 features a low-profile grille available in classic white or sleek black finish. Its unobtrusive appearance suits a variety of interiors, while its ABS housing and powder-coated metal grille ensure long-term durability and resistance to environmental factors.
| Specification | Details |
|---|---|
| Speaker Type | 2-Way Ceiling Loudspeaker |
| Woofer | 6.5" coated paper cone |
| Tweeter | 1" Mylar dome |
| Power Handling | 40W RMS (8 Ohm), 24W/12W/6W (100V) |
| Impedance | 8 Ohm or 100V line selectable |
| Frequency Response | 60 Hz - 20 kHz |
| SPL (1W/1m) | 89 dB |
| Material | ABS housing with metal grille |
| Colour Options | White (RAL9010) or Black (RAL9005) |
| Mounting Type | Spring clamp ceiling mount |
| Cut-Out Diameter | 186 mm |
| Dimensions | Ø 210 mm × 85 mm depth |
| Weight | 1.2 kg |
Whether installed in corporate boardrooms, hospitality areas, or retail environments, the Audac CS75 delivers articulate sound reproduction with a wide dispersion angle. Its discreet design, combined with straightforward mounting and dual system compatibility, makes it a preferred choice for audio integrators seeking quality and ease of installation.
Q: Is the Audac CS75 suitable for both music and speech applications?
A: Yes, its 2-way design ensures a full and balanced sound profile, making it ideal for background music and voice clarity.
Q: Can this speaker be used in both 8 Ohm and 100V systems?
A: The CS75 supports dual-mode operation, allowing it to integrate into either system with ease.
Q: Does the CS75 require a back can for installation?
A: It is designed for open-ceiling installations, but an optional back can may be used for improved acoustic isolation if desired.
Q: What tools are required for mounting the speaker?
A: No special tools are needed. The spring clamp system allows fast, secure mounting with minimal effort.
Q: Are black and white versions technically identical?
A: Yes, both colour options feature identical specifications and performance, differing only in aesthetic finish.
