Audac R2 Multi-Zone R2 Digital Audio Matrix

The Audac R2 Multi-Zone R2 Digital Audio Matrix is a multi-zone audio distribution system which is a truly prevalent solution for commercial and residential applications, with the flexibility of a multizone router. It delivers a comprehensive and expandable powerful solution for nearly every situation. With its large number of extension modules and configuration modes, it provides a solution for an uncountable amount of installations – large or small, simple or complex.

In general, it is an 8 x 8 digital audio matrix system, which is based on a powerful DSP processor. It is fully digitally controllable, and the built-in digital matrix makes it possible to patch any of the input signals to any of the output signals.

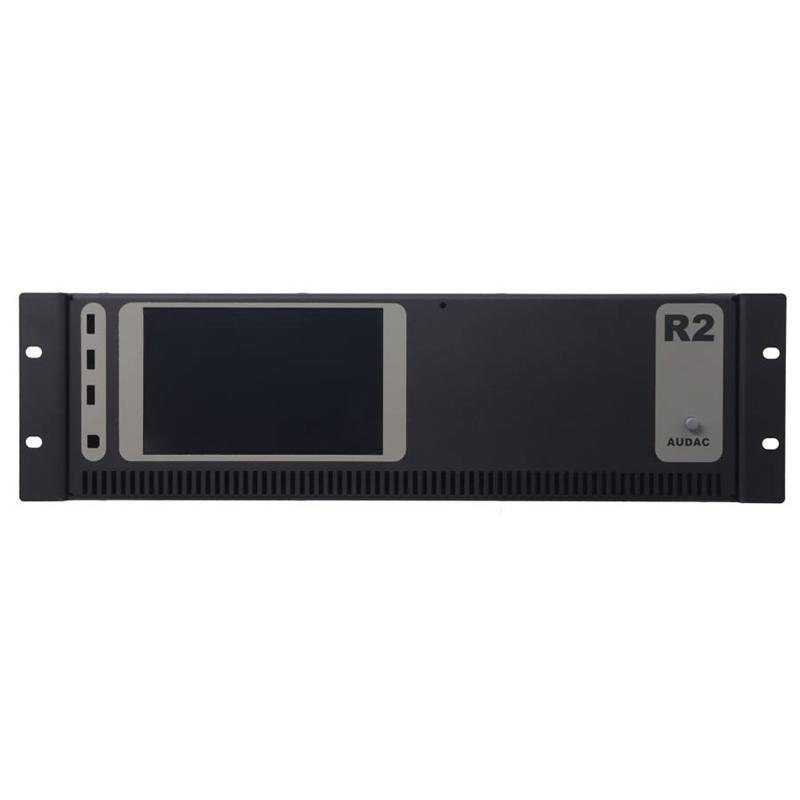

Note: The AUDAC R2DIS interactive 7' touch-screen display kit shown on some promotional images of the R2 is an optional expansion kit not included in the standard R2. R2DIS units are currently not available.

Detailed product information:

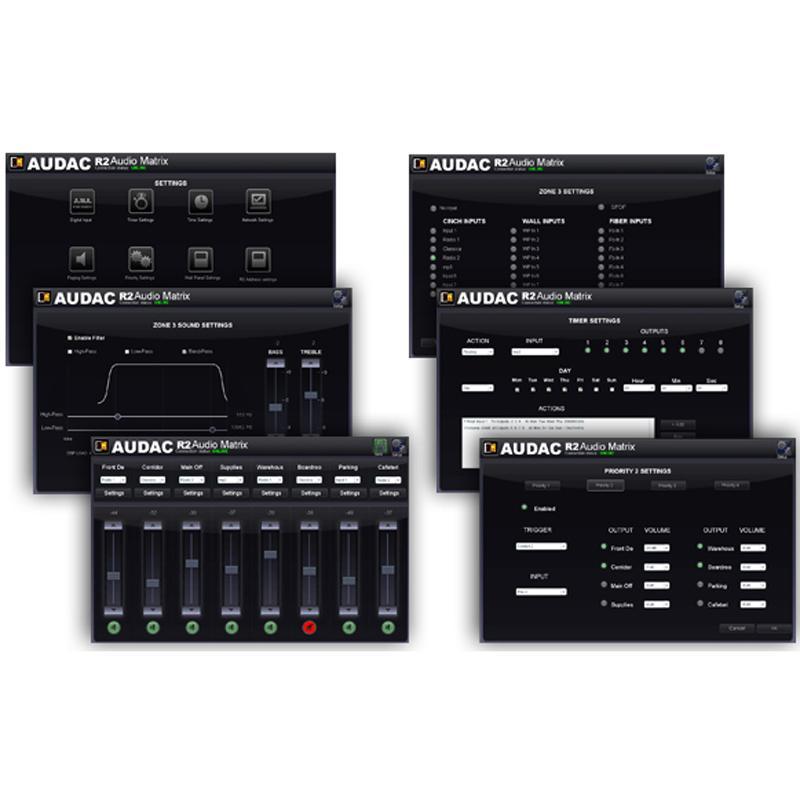

• Remote control: The remote control input is an RJ45 connector which should be connected to a LAN network. This makes it possible to control the R2 system using a web browser.
• RS232: The RS232 connector can be used to control the R2 with external controllers. This allows the control of the system with hardware of other manufacturers.

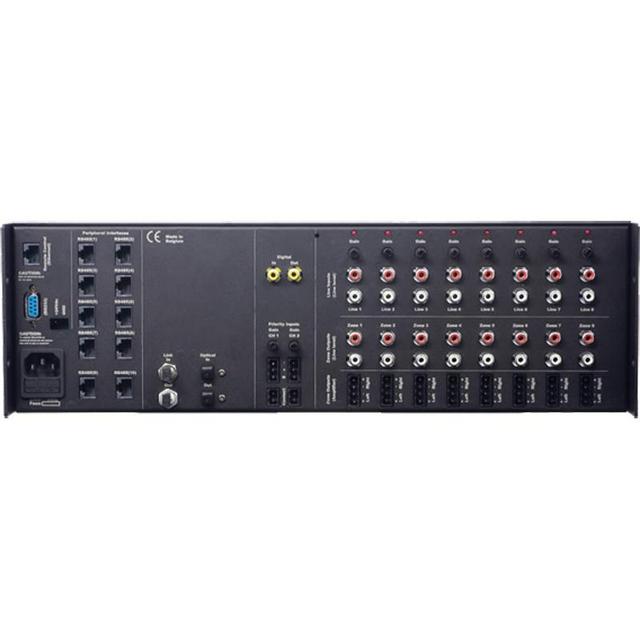

• Peripheral Interfaces: There are 10 RJ45 connectors provided for expansion with additional wall control panels and in- and output modules. All these connectors contain RS485 control signals, this allows the control of the amplifier from 10 different locations. 8 of these connectors also contain digital audio signals for expansion of the in- and output channels with additional wall line in- and output units.
• Input 1-8 / Output zone: 1 - 8 There are standard 8 line level in- and outputs provided. Each audio input channel is fitted with a clipping LED to indicate when the input signal is distorted, a gain control potentiometer to control the level of the input signal and RCA input connectors. Each zone output is standard fitted with an RCA line level output connector for the connection of external amplifiers.When the optional power amplifier kit is installed, each zone has an amplified stereo audio output with a power of 2 x 40 Watt.
• Priority Inputs: There are two priority audio inputs provided, each with a gain control potentiometer. Furthermore, there are also two priority contact inputs provided.
• Digital audio in- and outputs: There are digital audio in- and outputs provided which are both optical and coaxial provided.
• Link in- and output: There is an optical link in- and output provided which is meant for connecting more amplifiers in cascade by means of a fiber interconnection. (optional)
