Biamp REVAMP2060T 2-Channel Class-D Fanless Amplifier - 2 x 60W - 100V / 4 Ohm

Biamp REVAMP2060T 2-Channel Class-D Fanless Amplifier – 2 x 60W – 100V / 4Ω

Overview

The Biamp REVAMP2060T is a compact professional 2-channel Class-D power amplifier designed for commercial audio installations requiring reliability, flexibility and silent operation. Delivering 2 x 60W output power at both 100V line and 4Ω low impedance, the REVAMP2060T is ideal for background music, paging and multi-zone audio systems.

With its fanless convection-cooled design, integrated toroidal output transformer and slim 1U chassis, the REVAMP2060T provides maintenance-free operation and simple installation for professional AV environments.

Professional Class-D Amplification

The REVAMP2060T combines efficient Class-D amplifier technology with high audio performance and low power consumption.

• 2 x 60W RMS output power
• Supports 100V line and low impedance speaker systems
• Efficient Class-D amplifier topology
• Low heat generation and energy-efficient operation

Bridgeable Output Flexibility

The amplifier can easily be bridged into a more powerful single-channel amplifier for larger speaker loads or higher power applications.

• 120W bridged output at 100V
• 120W bridged output at 8Ω
• Ideal for single-zone high-power installations
• Supports multiple voltage output tappings

Silent Fanless Operation

Thanks to its convection-cooled design, the REVAMP2060T operates silently without internal fans, making it perfect for quiet environments.

• No internal cooling fan
• Silent operation
• Dust-free internal design
• Reduced maintenance requirements

Integrated Toroidal Transformer

A galvanically isolated toroidal output transformer is built in to minimise interference and ensure stable, clean audio performance.

• Reduced external interference
• Improved audio stability
• Enhanced installation reliability

Installer-Friendly Design

The REVAMP2060T is engineered for professional installers with practical features that simplify setup and integration.

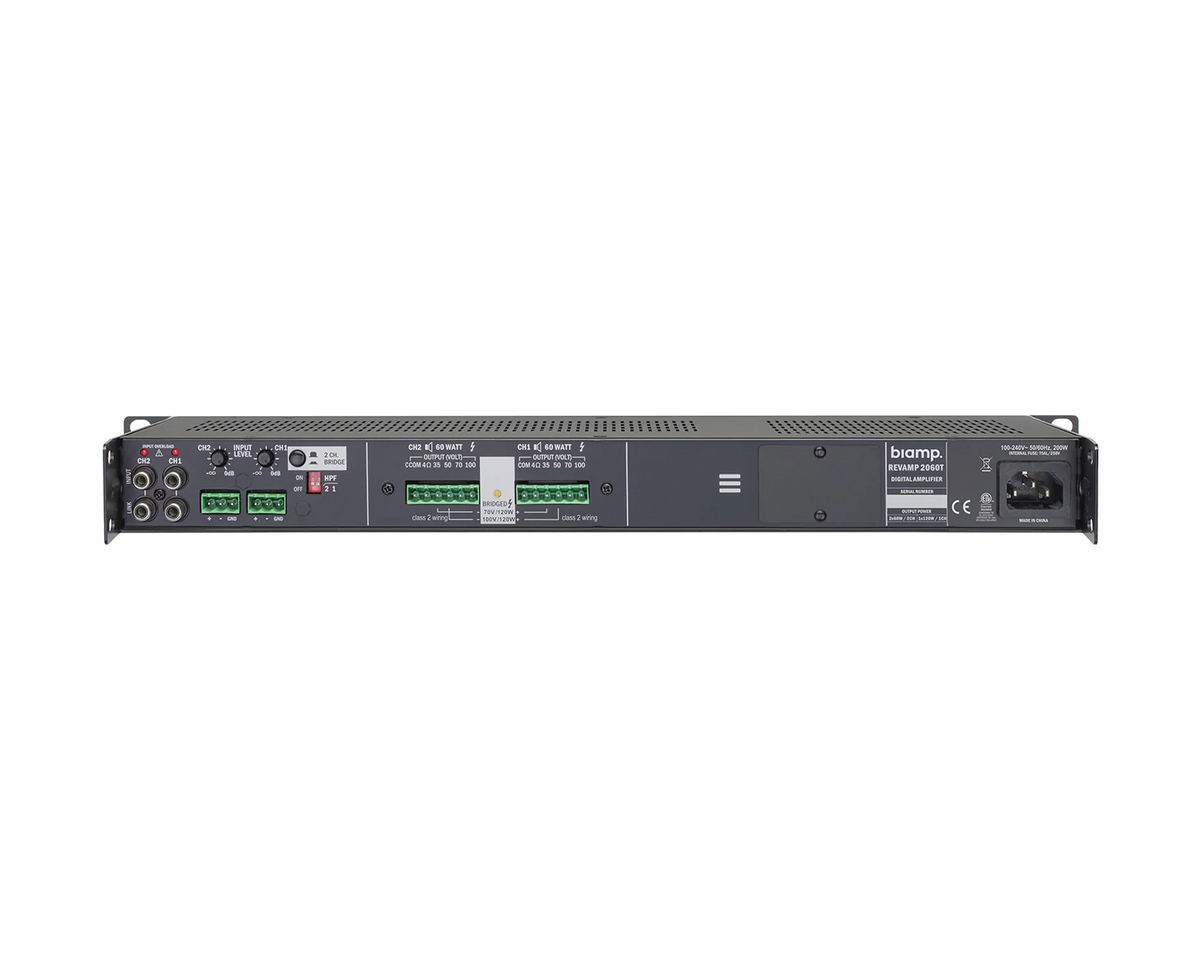

• Rear-panel clip LED indicators for gain setup
• Balanced and unbalanced line inputs
• Link connection options for system expansion
• Slim 1U rack-mountable design
• No front-panel controls for secure installations

Reliable Protection Circuitry

Integrated protection systems help ensure long-term reliability and safe operation in demanding commercial audio installations.

• Overload protection
• Short-circuit protection
• Thermal protection circuitry
• Designed for continuous operation

Key Features

• Professional 2-channel Class-D amplifier
• 2 x 60W output at 100V or 4Ω
• Bridgeable to 120W mono output
• Silent convection cooling
• Integrated toroidal output transformer
• Balanced and unbalanced inputs
• 1U rack-mount chassis
• Suitable for 100V and low impedance systems
• Energy-efficient switching mode power supply
• Maintenance-free operation

Specifications

Applications

Ideal for commercial audio systems, retail stores, hospitality venues, offices, schools, meeting rooms, restaurants, public buildings and distributed 100V speaker installations requiring silent and reliable amplification.

Q&A

Q: Can the REVAMP2060T be used with both 100V and low impedance speakers?
A: Yes, it supports both 100V line systems and 4Ω low impedance speaker configurations.

Q: Is the amplifier fan cooled?
A: No, it uses silent convection cooling with no internal fan.

Q: Can the amplifier be bridged?
A: Yes, it can be bridged into a single 120W amplifier at 100V or 8Ω.

Q: Is it suitable for rack installation?
A: Yes, the amplifier features a slim 1U 19" rack-mountable chassis.
