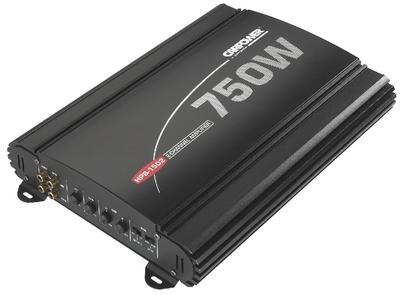

HPB-1502
Car HiFi Amplifiers of High Quality
With a particularly attractive price-performance ratio, equipped with integrated crossover networks for high requirements and with 2Ω stability. Car HiFi amplifier, 750W
2-channel power amplifier with adjustable low-pass filter and high-pass filter, can be bridged, with bass boost, par. line out, switchable stereo or mono. Due to the high power, a perfect amplifier e.g. for complete rear-shelf systems or for subwoofers, high power input possible with FGA-22 or FGA-22HQ.
CAR&HIFI 06/2005
Test winner
Price/performance: excellent
'Neat workmanship, by no means cheap components used. High power capability. Provides a soft reproduction of the midrange and high frequencies as well as a full, dynamic and precise bass reproduction.'
autohifi 08/2005
Price tip
Price/performance ****** (best possible)
'A real great offer! The most powerful amplifier and the only one with a double PSU in the test'
Technical Facts:
- Output power:
- Max. power
750WMAX
- RMS power 2Ω
2 x 250WRMS
- RMS power 4Ω
2 x 175WRMS
- Bridged power 4Ω
1 x 500WRMS
- General information:
- Frequency range
20-20,000Hz
- Load impedance (min.)
2Ω (bridged: 4Ω)
- Input sensitivity (line)
0.4-4V/20kΩ
- Channel separation
> 50dB
- S/N ratio
> 89dB (A)
- THD
< 0.2%
Filters:
- Low-pass
40-300Hz, 6dB/oct.
- High-pass
40-500Hz, 6dB/oct.
- Equalizer:
- Bass boost
0-12dB/50Hz
(adjustable)
- Power supply:
- Operating voltage
10-16V DC current /45A
- Connections
screw terminals
- Inputs:
- Line
1 x RCA L/R
- Outputs:
- Speakers
screw terminals
- Line
1 x RCA L/R
- Admiss. ambient temp.
0-40 °C
- Dimensions
252x62x363mm
- Weight
3.5kg
